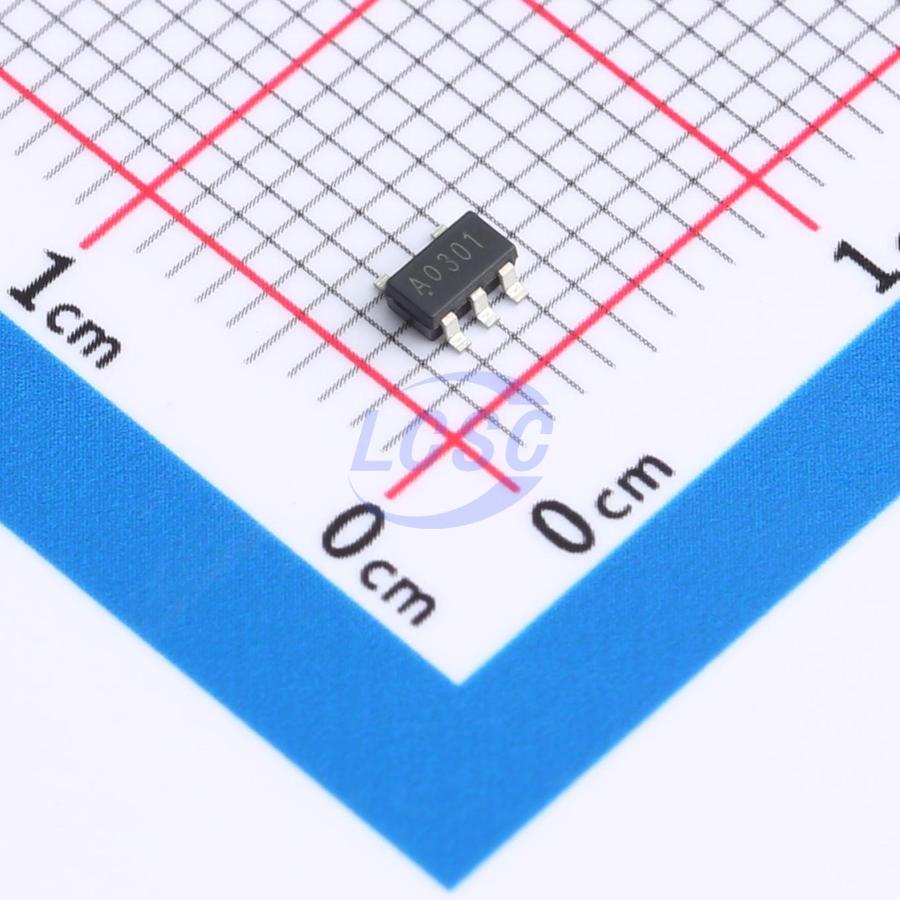

XC9145B33CMR-G

XC9145 series are synchronous step-up DC/DC converters with a 200mΩ N-channel driver FET and a 270mΩ synchronous P-channel switching FET built-in. The ultra-low current consumption of 400nA and PWM/PFM auto-switching control have dramatically improved the efficiency of the output current of 10μA or less, which was difficult to achieve in the past. (89.9%@V1×2 2.4V, V0∪7 = 3.3V, |0∪7 = 10|A) XC9145 series can significantly reduce the power consumption of battery-powered devices which consume a large percentage of power when the system is in standby mode. It contributes to keeping battery life longer and reducing battery size smaller.

Applications

• Low power wireless communication products
• Low power IoT module
• Battery-powered medical devices / Wearable devices (Health monitoring, Fitness devices)
• Remote controls
• Primary battery portable systems
• Metering devices / Smart meter (Gas / Water / Temperature)
• Home Security / Home Automation
• Energy Harvest

Key features

• Input Voltage Range: 0.65V ~ 5.5V (Operation Start Voltage 1.6V)
• Fixed Output Voltage: 3.0V ~ 5.5V (0.1V increments)
• Output Current: 430mA @VOUT = 5.0V, VBAT = 3.3V; 300mA @VOUT = 3.3V, VBAT = 1.8V
• Control Mode: 1.2MHz
• Quiescent Current: 400nA
• Efficiency: 89.9% @VIN = 2.4V, VOUT = 3.3V, IOUT = 10μA; 93.2% @VIN = 2.4V, VOUT = 3.3V, IOUT = 100mA
• Auto PWM/PFM
• Load transient response: 300mV @VOUT = 3.3V, VBAT = 1.8V, IOUT: 1mA - 200mA
• Protection function: Current Limit, Soft start, Load Disconnection
• Operating Ambient Temperature: -40°C ~ 105°C
• Package: SOT - 25 (2.8×2.9×1.3mm), USP - 6C (1.8×2.0×0.6mm), WLP - 6 - 05 (1.08×1.28×0.4mm)
• Environmentally Friendly: EU RoHS Compliant, Pb Free
