XLSEMIDatasheet (PDF)

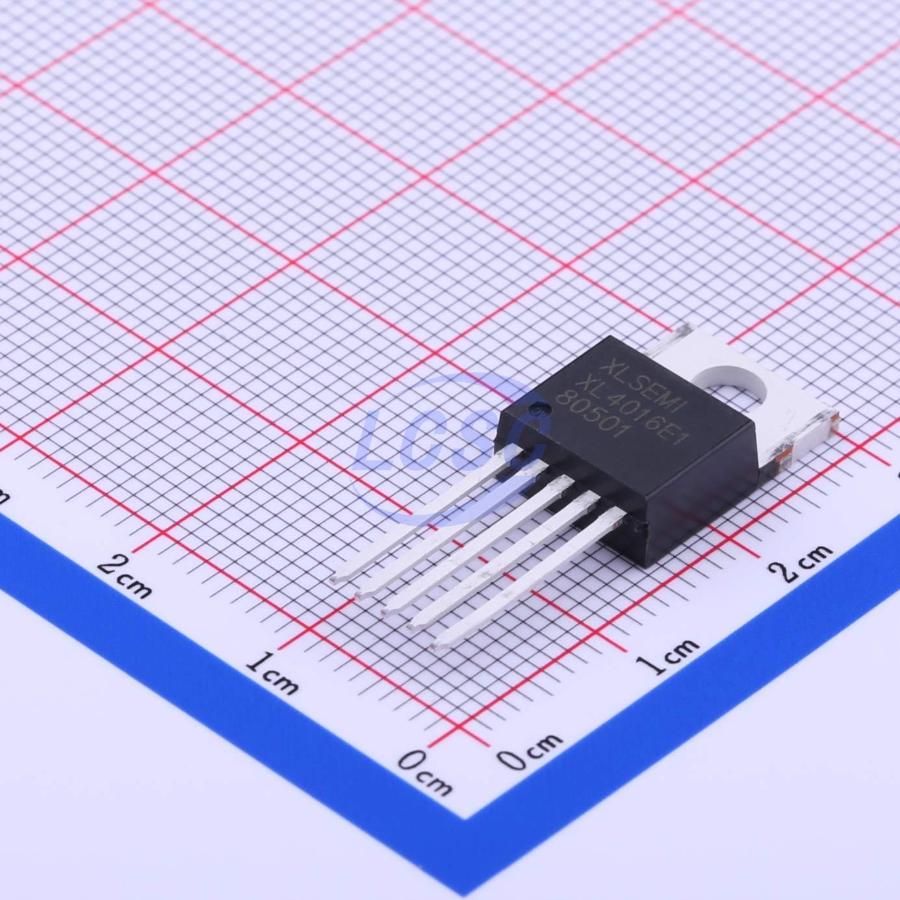

XL4016E1
Buck Switching Regulator IC Adjustable 1.25V~32V 1 Output 12A TO-220-5
TO-220-5ROHS CompliantActive
180KHz 40V 12A Switching Current Buck DC-DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL4016E1
- Store part #
- C55881
- Package / case
- TO-220-5
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,201 in stock
#C55881
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.87 | ₹144.87 |
| 10+ | ₹123.37 | ₹1,233.70 |
| 50+ | ₹96.01 | ₹4,800.50 |
| 100+ | ₹83.63 | ₹8,363.00 |
| 500+ | ₹79.71 | ₹39,855.00 |
| 1,000+ | ₹77.33 | ₹77,330.00 |
1 × ₹144.87
₹144.87
excl. GST
₹170.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
XL4016E1
₹144.87 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 144kHz~216kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~32V
- Output Current
- 12A
- Quiescent Current
- 2.1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.714 g
Overview
The XL4016 is a high-efficiency step-down DC-DC converter with a fixed 180KHz switching frequency, capable of delivering up to 12A output current. It features low ripple, excellent line and load regulation. The XL4016 integrates a fixed-frequency oscillator and frequency compensation circuit, simplifying circuit design. The PWM control loop adjusts the duty cycle linearly from 0 to 100%. Built-in output overcurrent protection is included. When the output is short-circuited, the switching frequency drops from 180KHz to 48KHz. The integrated compensation module reduces the number of external components required.
Applications
- LCD TVs and displays
- Portable instrument power supplies
- Communication equipment power supply
Key features
- Recommended operating voltage range: 8V~36V
- Adjustable output voltage from 1.25V to 32V
- Maximum duty cycle 100%
- Minimum dropout voltage 0.3V
- Fixed 180KHz switching frequency
- Maximum 12A switching current
- Integrated power MOSFET
- Efficiency up to 96%
- Excellent line and load regulation
- Built-in thermal shutdown protection
- Built-in current limiting
- Built-in output short-circuit protection
- TO220-5L package
