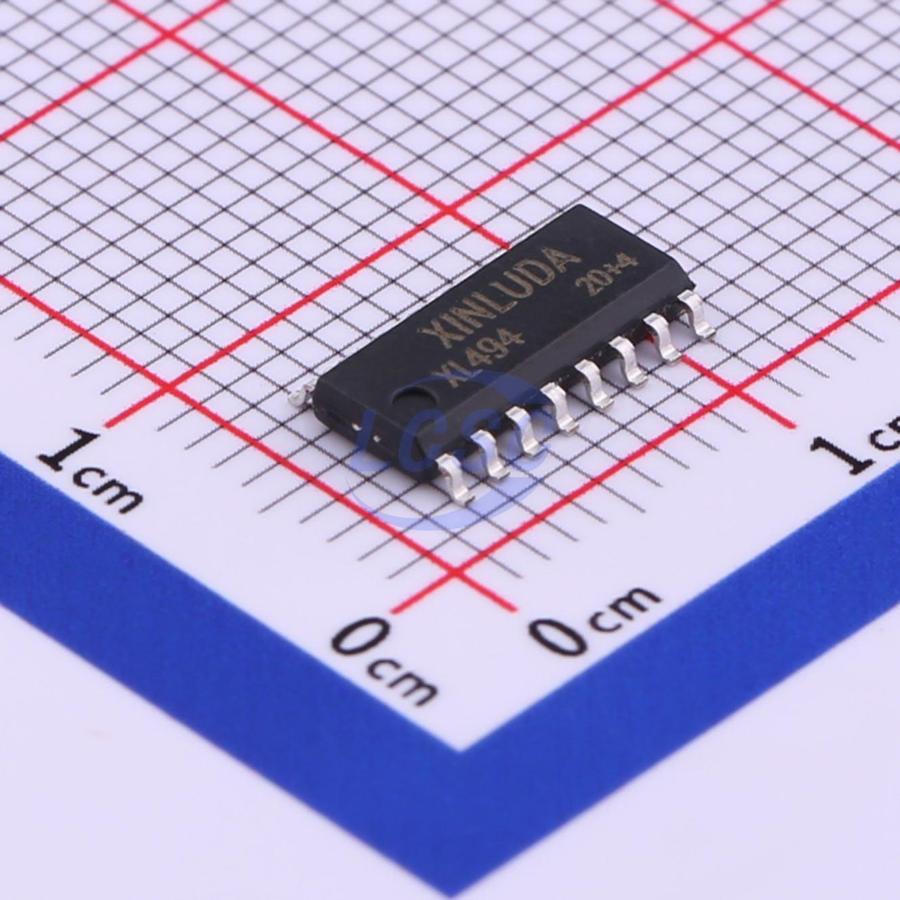

XL494
1kHz~200kHz Adjustable SOP-16 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-16ROHS CompliantActive
Current mode PWM controller
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL494
- Store part #
- C521178
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,475 in stock
#C521178
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.87 | ₹94.35 |
| 50+ | ₹15.03 | ₹751.50 |
| 150+ | ₹13.11 | ₹1,966.50 |
| 500+ | ₹11.68 | ₹5,840.00 |
| 2,500+ | ₹9.98 | ₹24,950.00 |
| 5,000+ | ₹9.41 | ₹47,050.00 |
5 × ₹18.87
₹94.35
excl. GST
₹111.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL494
₹94.35 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+80℃@(TA)
- Number of Outputs
- 2
- Frequency - Switching
- 1kHz~200kHz
- Output Type
- Adjustable
- Topology
- Push-Pull;Buck
- Operating Voltage
- 7V~40V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.308 g
Overview
XL494 and XD494 are switching pulse-width control circuits, primarily used for switching power supply control.
Key features
- Complete pulse-width control circuit.
- Includes an active or driven oscillator.
- Includes dual error amplifiers.
- Includes 5V reference supply.
- Adjustable dead-time control.
- Independent output transistors (source or sink 200mA).
- Push-pull or single-ended output control mode.
