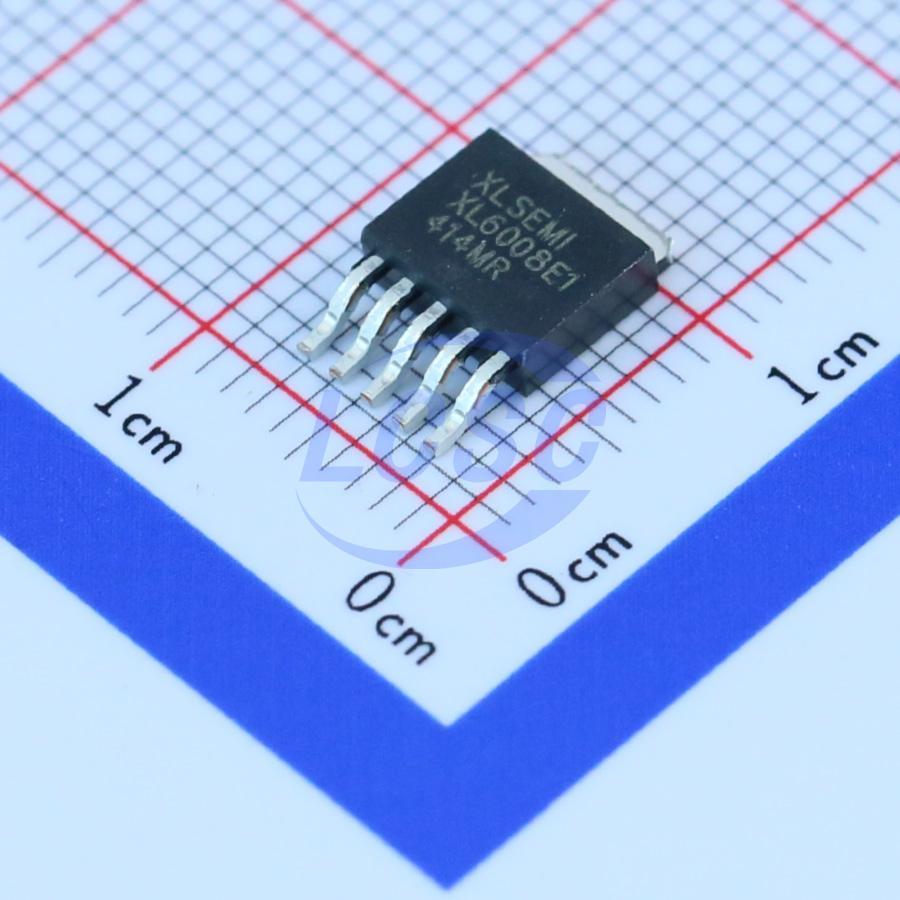

XL6008E1
320kHz~480kHz Buck-Boost Adjustable 3A TO-252-5 Voltage Regulators - DC DC Switching Regulators RoHS
TO-252-5ROHS CompliantActive
400KHz 60V 3A Switching Current Boost/Buck-Boost/Inverting DC/DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL6008E1
- Store part #
- C73012
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,188 in stock
#C73012
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.02 | ₹93.02 |
| 10+ | ₹72.65 | ₹726.50 |
| 30+ | ₹62.67 | ₹1,880.10 |
| 100+ | ₹52.47 | ₹5,247.00 |
| 500+ | ₹46.62 | ₹23,310.00 |
| 1,000+ | ₹43.37 | ₹43,370.00 |
1 × ₹93.02
₹93.02
excl. GST
₹109.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL6008E1
₹93.02 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 320kHz~480kHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Flyback;SEPIC;Inverting
- Operating Voltage
- 3.6V~32V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
The XL6008 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6008 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6008 regulator is special design for portable electronic equipment.
Applications
- Automotive and Industrial Boost Buck-Boost / Inverting Converters
- Portable Electronic Equipment
Key features
- Wide 3.6V to 32V Input Voltage Range
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Current Mode Control Provides Excellent Transient Response
- 1.25V reference adjustable version
- Fixed 400KHz Switching Frequency
- Maximum 3A Switching Current
- SW PIN Built in Over Voltage Protection
- Excellent line and load regulation
- EN PIN TTL shutdown capability
- Internal Optimize Power MOSFET
- High efficiency up to 92%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function
- Available in TO252-5L package
