XLSEMIDatasheet (PDF)

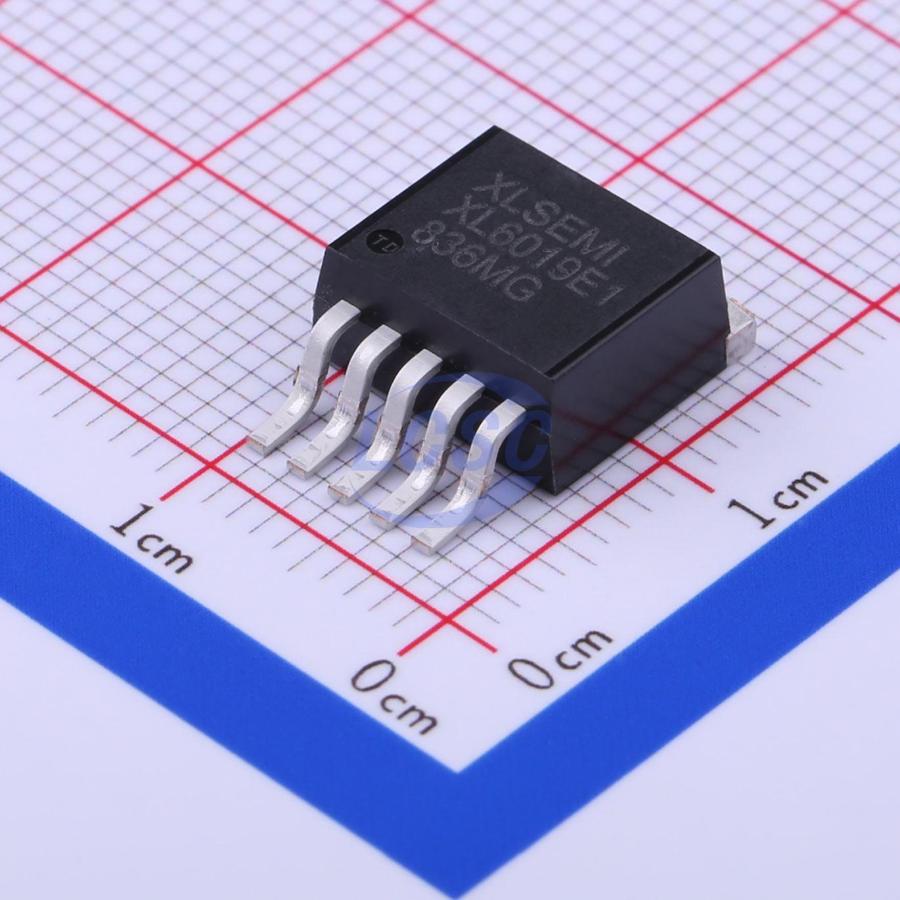

XL6019E1
Buck-Boost Switching Regulator IC Adjustable 1 Output 5A TO-263-5
TO-263-5ROHS CompliantActive
180KHz 60V 5A Switching Boost/Buck-Boost DC-DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL6019E1
- Store part #
- C73018
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55,549 in stock
#C73018
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.36 | ₹99.36 |
| 10+ | ₹85.89 | ₹858.90 |
| 30+ | ₹76.32 | ₹2,289.60 |
| 100+ | ₹68.49 | ₹6,849.00 |
| 500+ | ₹51.76 | ₹25,880.00 |
| 800+ | ₹50.45 | ₹40,360.00 |
1 × ₹99.36
₹99.36
excl. GST
₹117.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
XL6019E1
₹99.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 180kHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- SEPIC
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.968 g
Overview
A monolithic IC specifically designed for boost and buck-boost topologies, operating within a DC 5V to 40V input voltage range, with low ripple and integrated power MOSFET. Built-in fixed-frequency oscillator and frequency compensation circuitry simplify circuit design. The PWM control loop provides linear duty cycle adjustment from 0 to 90%. Features built-in overcurrent protection and EN pin logic-level shutdown function.
Applications
- EPC/Laptop In-Vehicle Adapter
- Boost, Buck-Boost Conversion
- Handheld Device Power Supply
Key features
- Wide input voltage range: 5V to 40V
- Single feedback pin controls positive or negative output voltage
- Current mode control for excellent transient response
- 1.25V output voltage sense reference, fixed 180KHz switching frequency
- Maximum 5A switch current
- Built-in SW overvoltage protection
- Excellent line and load regulation
- EN pin TTL shutdown function
- Integrated power MOSFET
- Conversion efficiency above 94%
- Built-in frequency compensation
- Built-in soft-start
- Built-in thermal shutdown
- Built-in current limiting
- TO263-5L package
