XLSEMIDatasheet (PDF)

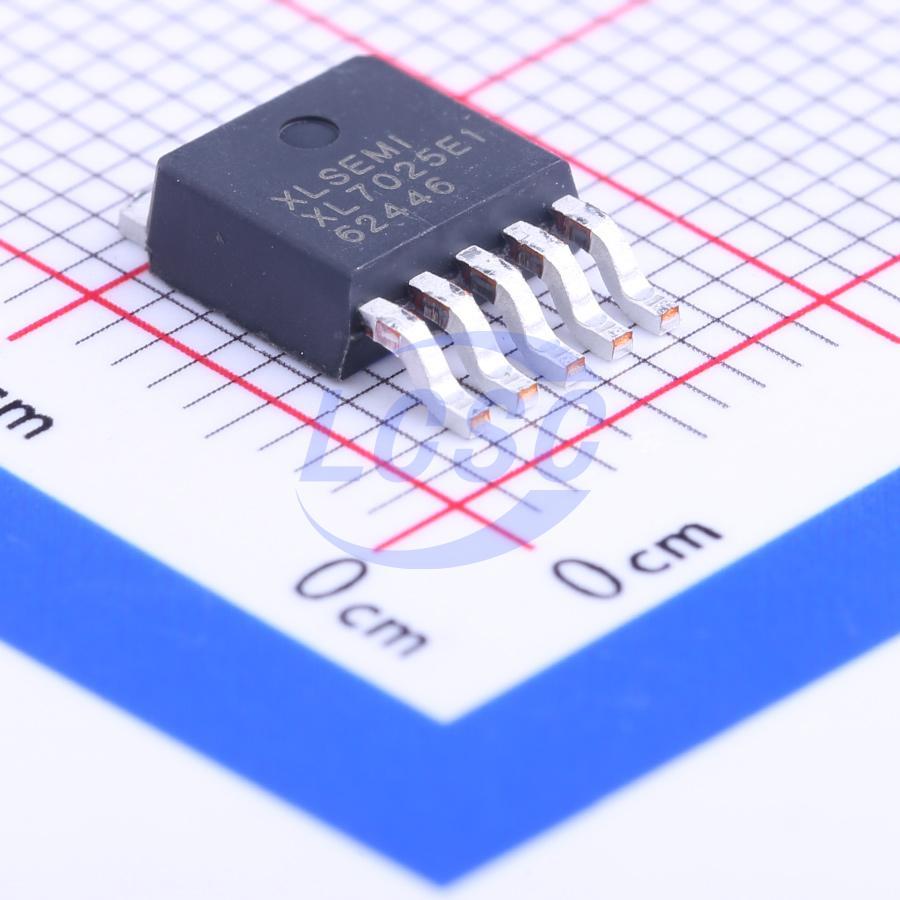

XL7025E1
Buck Switching Regulator IC Adjustable 1.25V~20V 0.6A TO-252-5
TO-252-5RoHSActive
0.6A 150KHz 100V step-down DC-DC converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL7025E1
- Store part #
- C126473
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,041 in stock
#C126473
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.28 | ₹61.28 |
| 10+ | ₹49.51 | ₹495.10 |
| 30+ | ₹44.52 | ₹1,335.60 |
| 100+ | ₹38.13 | ₹3,813.00 |
| 500+ | ₹35.34 | ₹17,670.00 |
| 1,000+ | ₹33.54 | ₹33,540.00 |
1 × ₹61.28
₹61.28
excl. GST
₹72.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL7025E1
₹61.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 10V~80V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~20V
- Output Current
- 600mA
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.627 g
Overview
XL7025 is a high-efficiency, high-voltage step-down DC-DC converter operating at a fixed 150KHz switching frequency, capable of delivering up to 0.6A output current with low ripple and excellent line and load regulation. The device integrates a fixed-frequency oscillator and frequency compensation circuitry, simplifying circuit design. Its PWM control loop enables linear duty cycle adjustment from 0 to 100%. Built-in output overcurrent protection reduces the switching frequency from 150KHz to 45KHz under short-circuit conditions. An internal compensation block helps minimize the external component count.
Applications
- Electric vehicle controller power supply
- Communication
Key features
- Recommended operating voltage: 10V~80V
- Output voltage adjustable from 1.25V to 20V
- Maximum duty cycle 100%
- Minimum dropout voltage 1V
- Fixed 150KHz switching frequency
- Maximum output current 0.6A
- Recommended maximum output current 0.6A at 48V input, 5V output
- Recommended maximum output current 0.3A at 48V input, 15V output
- Built-in high-voltage power transistor
- Efficiency up to 85%
- Excellent line and load regulation
- Built-in over-temperature shutdown protection
- Built-in current limiting
- Built-in output short-circuit protection
- TO252-5L package
