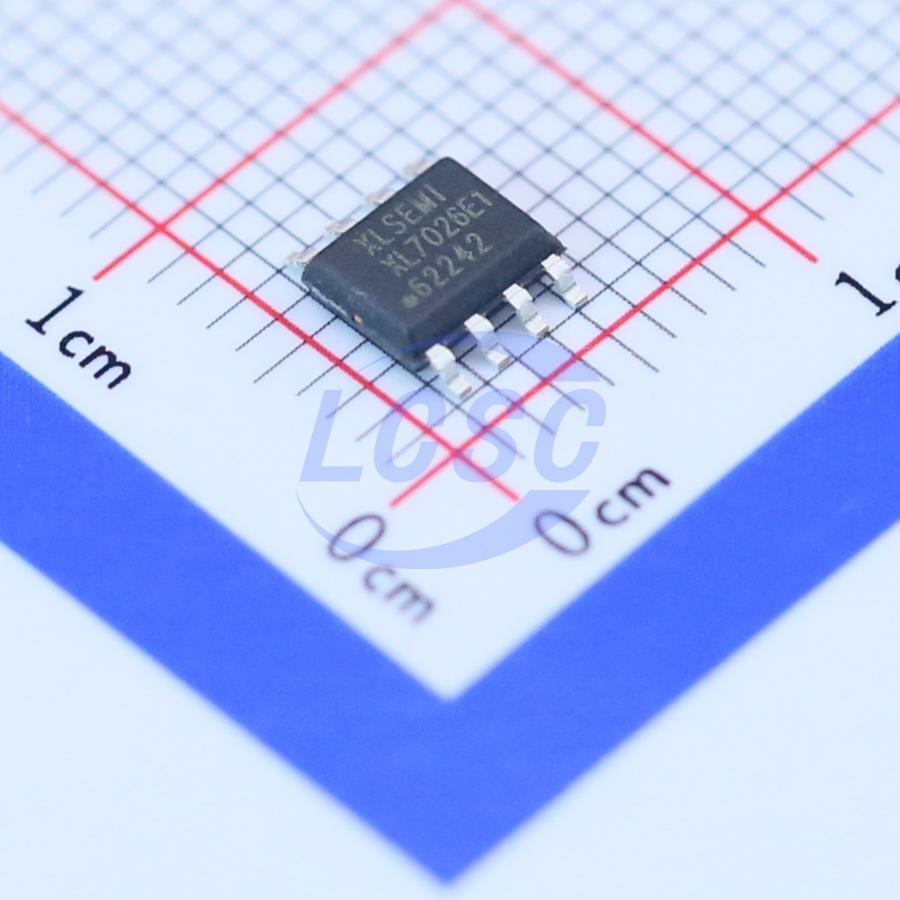

XLSEMI

XL7026E1

Buck Switching Regulator IC Adjustable 1.25V~20V 1 Output 0.3A SOP-8-EP

SOP-8-EPROHS CompliantActive

Buck DC-DC Converter Chip

Manufacturer: XLSEMI
Manufacturer part #: XL7026E1
Store part #: C89529
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,021 in stock

#C89529

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹54.69	₹54.69
10+	₹46.91	₹469.10
30+	₹43.12	₹1,293.60
100+	₹39.33	₹3,933.00
500+	₹36.94	₹18,470.00
1,000+	₹35.73	₹35,730.00

Quantity (min 1)

1 × ₹54.69

₹54.69

excl. GST

₹64.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

XL7026E1

₹54.69 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency - Switching: 150kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 16V~90V
Switch tube (built-in/external): Built-in
Output Voltage: 1.25V~20V
Output Current: 300mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.233 g

Overview

221074A01 is a demonstration board designed for the XL7026, intended for application demos with DC 16V~90V input, 15V output, and a maximum output current of 0.3A. Peak conversion efficiency can exceed 90%. XL7026 is a switching step-down DC-DC converter IC with a fixed switching frequency of 150KHz, which helps reduce the size of external components. The IC features excellent line regulation and load regulation, with output voltage adjustable anywhere between 1.25V and 20V. Integrated protection features include overcurrent protection and short-circuit protection. The XL7026 comes in an SOP8-EP package and works with standard external components for flexible application.
