XLSEMIDatasheet (PDF)

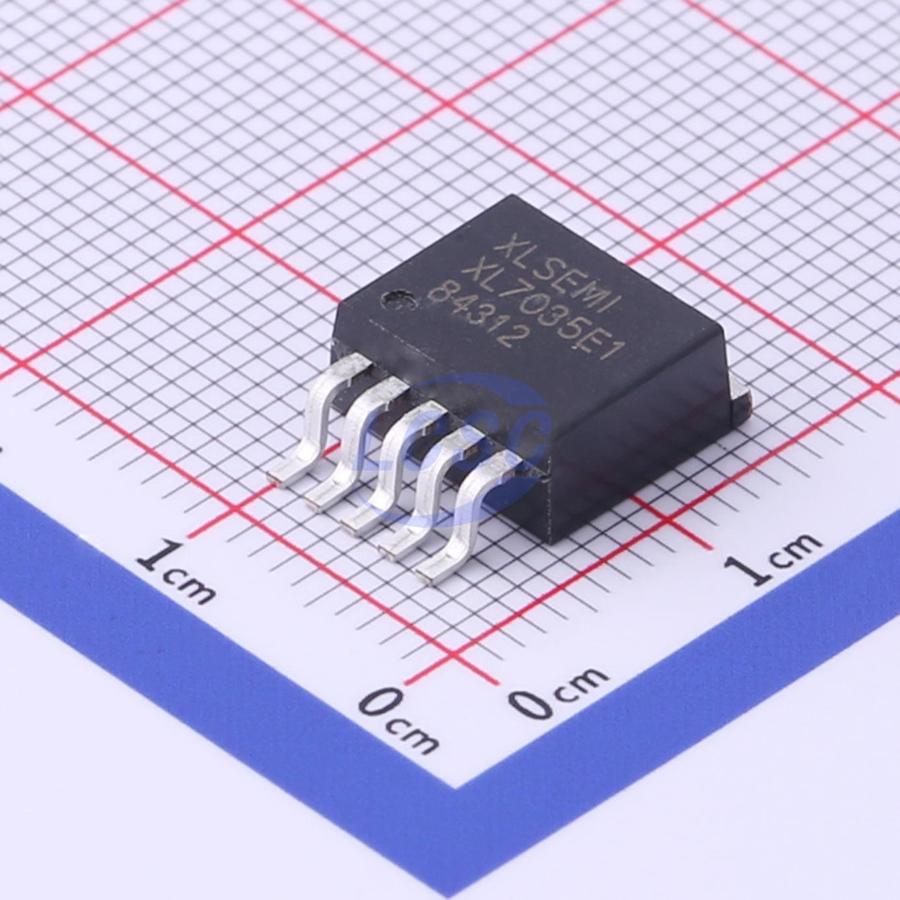

XL7035E1
Buck Switching Regulator IC Adjustable 1.25V~20V 1 Output 1A TO-263-5
TO-263-5ROHS CompliantActive
1A 150KHz 80V Buck DC-DC Converter
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL7035E1
- Store part #
- C88225
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,253 in stock
#C88225
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.05 | ₹96.05 |
| 10+ | ₹74.59 | ₹745.90 |
| 30+ | ₹63.76 | ₹1,912.80 |
| 100+ | ₹53.13 | ₹5,313.00 |
| 500+ | ₹46.83 | ₹23,415.00 |
| 800+ | ₹43.37 | ₹34,696.00 |
1 × ₹96.05
₹96.05
excl. GST
₹113.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
XL7035E1
₹96.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 10V~80V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~20V
- Output Current
- 1A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.114 g
Overview
The XL7035 is a high-efficiency, high-voltage step-down DC-DC converter operating at a fixed 150KHz switching frequency, capable of delivering up to 1A output current with low ripple and excellent line and load regulation. The XL7035 integrates a fixed-frequency oscillator and frequency compensation circuitry, simplifying circuit design. The PWM control loop adjusts the duty cycle linearly from 0 to 100%. Built-in output overcurrent protection reduces the switching frequency from 150KHz to 45KHz under output short-circuit conditions. The internal compensation module minimizes the number of external components required.
Applications
- EV controller power supply communication
Key features
- 10V to 80V wide input voltage range
- Output voltage adjustable from 1.25V to 20V
- Maximum duty cycle 100%
- Minimum dropout voltage 1V
- Fixed 150KHz switching frequency
- Maximum 1A output current
- Built-in high-voltage power transistor
- Up to 85% efficiency
- Excellent line and load regulation
- Built-in over-temperature shutdown protection
- Built-in current limiting
- Built-in output short-circuit protection
- TO263-5L package
