XLSEMIDatasheet (PDF)

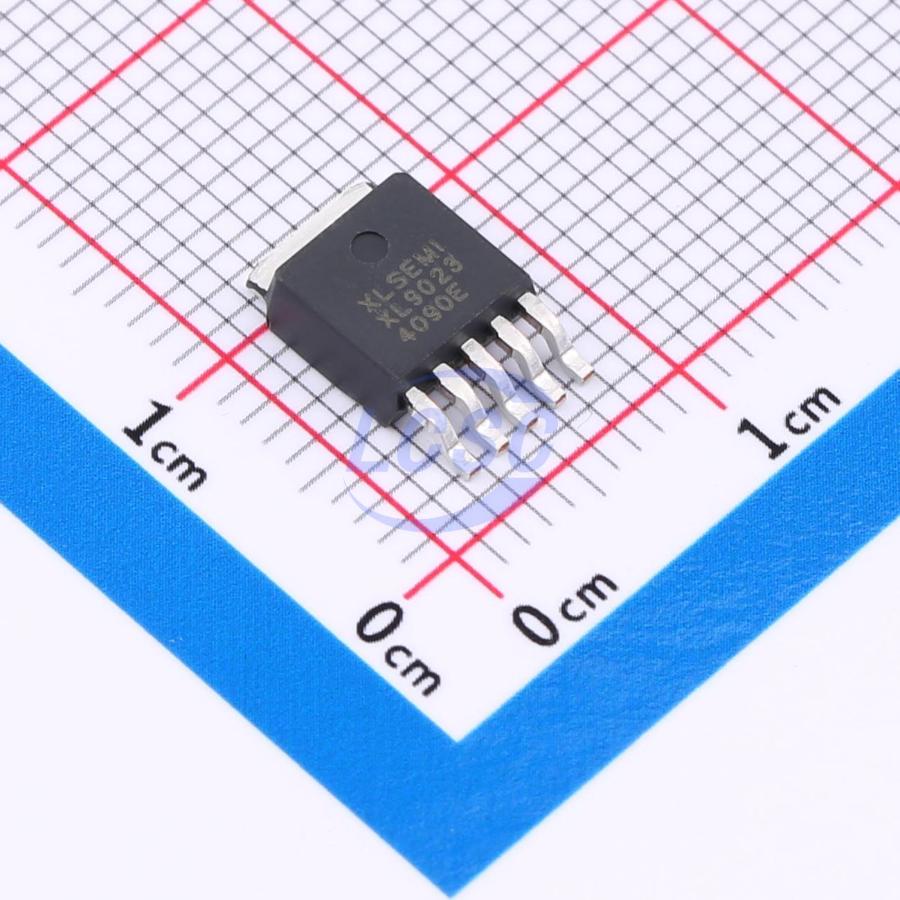

XL9023
Buck Switching Regulator IC Adjustable 1.25V~35V 1 Output 4A TO-252-5L
TO-252-5LROHS CompliantActive
IC REG BUCK ADJ 4A TO-252-5L
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL9023
- Store part #
- C48031549
- Package / case
- TO-252-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
956 in stock
#C48031549
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.63 | ₹65.63 |
| 10+ | ₹58.03 | ₹580.30 |
| 30+ | ₹54.11 | ₹1,623.30 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹48.25 | ₹24,125.00 |
| 1,000+ | ₹46.94 | ₹46,940.00 |
1 × ₹65.63
₹65.63
excl. GST
₹77.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL9023
₹65.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 96kHz~144kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 1.25V~35V
- Quiescent Current
- 2.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
XL9023 is a high-efficiency synchronous rectification buck DC-DC switching converter with a fixed 120KHz switching frequency and an output current capability of up to 4A. The device supports a wide input voltage range of 5V to 40V and up to 100% duty cycle output. An integrated loop compensation module helps reduce external component count, lowering system cost and saving PCB space. The XL9023 integrates thermal shutdown protection, output current limiting protection, and short-circuit protection. When short-circuit protection is activated, the switching frequency is reduced from 120KHz to approximately 30KHz.
Applications
- Automotive Electronics
- Industrial Control
- Communication Equipment
- IoT
Key features
- Recommended operating voltage: 5V~40V
- Output voltage range: 1.25V~35V
- Maximum duty cycle 100%
- Feedback reference voltage accuracy ±2%
- Fixed 120KHz switching frequency
- Maximum 4A switching current
- Integrated power MOSFET
- Efficiency up to 95% and above
- Output power up to 30W
- Excellent line regulation and load regulation
- Built-in thermal shutdown protection
- Built-in current limiting protection
- Built-in short circuit protection
- Temperature Grade 1: ambient operating temperature range -40℃ to 125℃
- Device HBM ESD classification Class 3A
- TO252-5L package
