XySemiDatasheet (PDF)

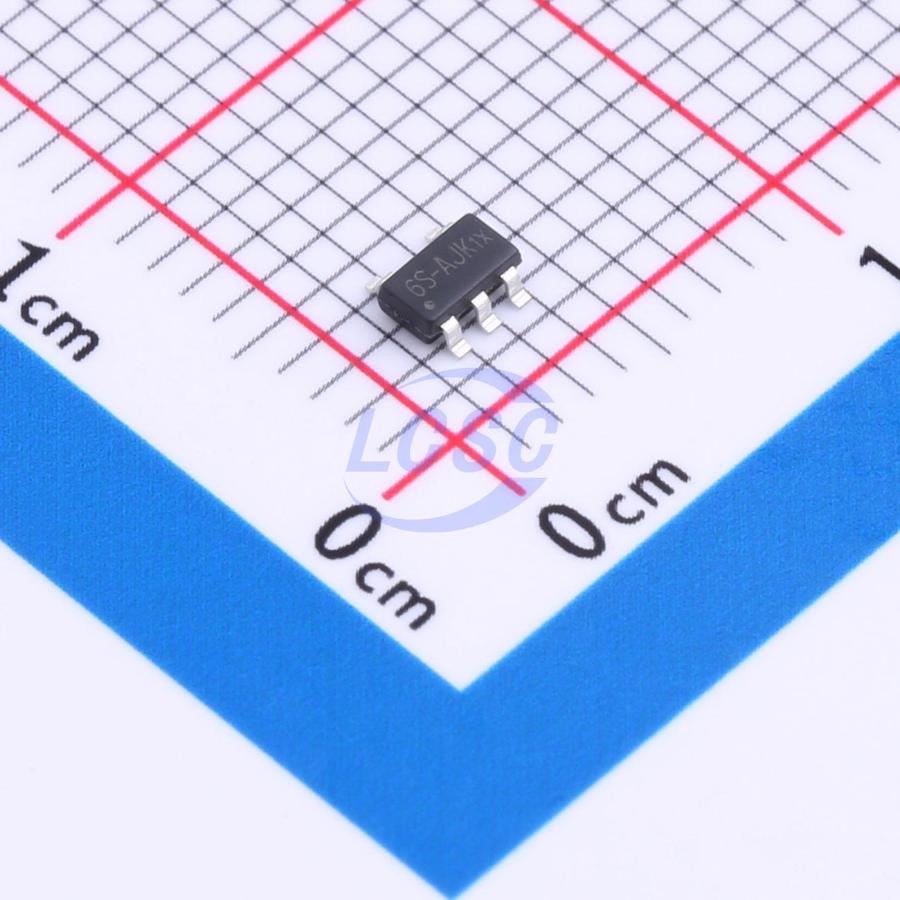

XM5062S-ADJ
1.5MHz Step-down type Adjustable 600mV~6V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS CompliantActive
1A Synchronous Step-Down DC/DC Converter
- Manufacturer
- XySemi
- Manufacturer part #
- XM5062S-ADJ
- Store part #
- C2924930
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C2924930
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 3,000+ | ₹4.83 | ₹14,490.00 |
| 6,000+ | ₹4.34 | ₹26,040.00 |
| 9,000+ | ₹4.09 | ₹36,810.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XM5062S-ADJ
₹79.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 1A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The XM5062S-ADJ is a current mode synchronous step-down converter with fixed operating frequency. The supply current is only 20uA at operating and less than 1uA at shutdown. This device is the ideally solution for Li-Ion battery powered system applications and small size board applications. This device has internal switch, no external diode. It has internal fixed 1.5MHz frequency and makes application circuit smaller. It can reach very ripple with small capacity & inductor. The XM5062S-ADJ is available in an adjustable output voltage version. The adjustable version has wide output range from 0.6V to VIN. The XM5062S-ADJ series products are available in a low profile (1mm) tiny SOT23-5 package.
Applications
- Mobile Phone/Smartphone
- DVB
- GPS
- FPGA Core Power Supply
- Communications
Key features
- 1A Output Current
- High Efficiency up to 96%
- 2.5V to 6.0V Input Range
- Adjustable Output Voltage from 0.6V to VIN
- Low Quiescent Current 20uA
- No Schottky Diode Required
- 1.5MHz Constant Frequency Operation
- Low Dropout Operation: 100% Duty Cycle
- Current Mode Operation for Excellent Line and Load Transient Response
- Operating Temperature: -40°C to +85°C
- Available in tiny SOT23-5 Package
