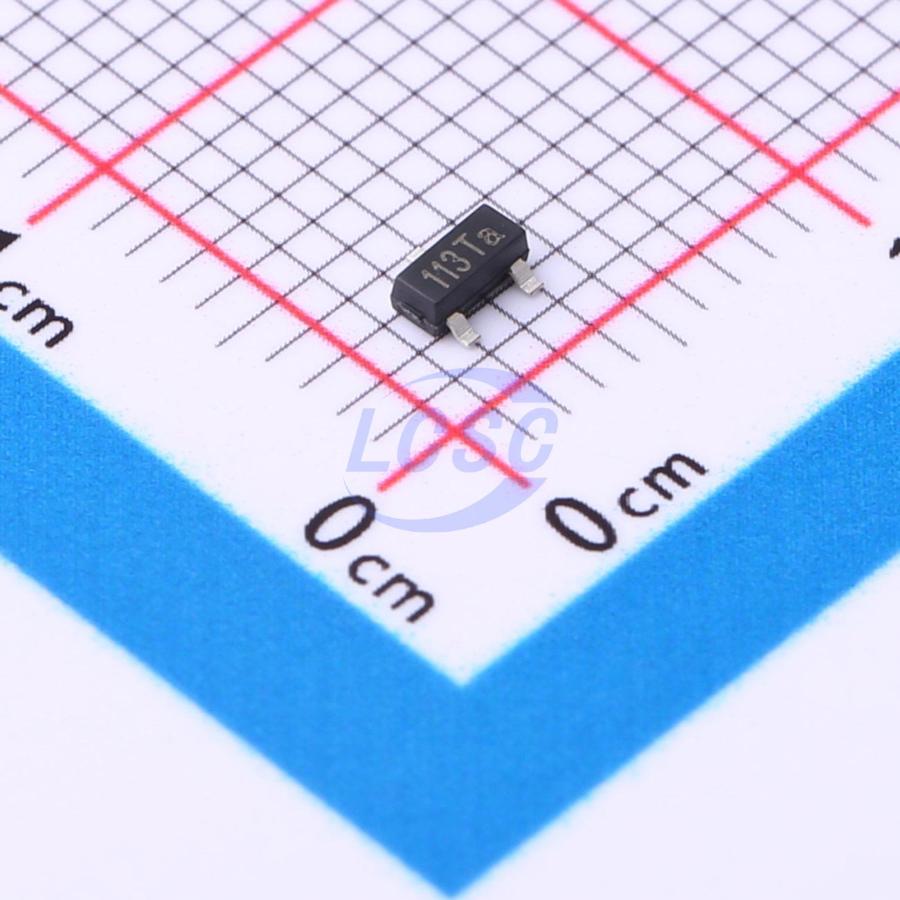

XP151A13A0MR-JSM
N-Channel 20V 0.5A 0.5W Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET N-CH 20V 0.5A SOT-23
- Manufacturer
- JSMSEMI
- Manufacturer part #
- XP151A13A0MR-JSM
- Store part #
- C2874695
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C2874695
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.07 | ₹65.35 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.74 | ₹3,870.00 |
| 3,000+ | ₹7.36 | ₹22,080.00 |
| 6,000+ | ₹6.93 | ₹41,580.00 |
5 × ₹13.07
₹65.35
excl. GST
₹77.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XP151A13A0MR-JSM
₹65.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 500mA
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 150mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This N-channel MOSFET utilizes advanced trench technology and design to achieve excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Load Switch for Portable Devices
- DC/DC Converter
Key features
- TrenchFET Power MOSFET
- Lead free product is acquired
- Surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JSM2302#C916403JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 16,620 | ₹3.11 · 16,620 in stock | View |
 | SI2302-2.3A-JSM#C5296725JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 15,87,450 | ₹2.05 · 15,87,450 in stock | View |
 | NTR4501NT1G-JSM#C18193640JSMSEMI · SOT-23-3 | JSMSEMI | SOT-23-3 | 2,120 | ₹7.77 · 2,120 in stock | View |
 | AO3400A#C5296724JSMSEMI · SOT-23-3L | JSMSEMI | SOT-23-3L | 34,740 | ₹5.60 · 34,740 in stock | View |
 | JSM3420#C963397JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 3,450 | ₹8.56 · 3,450 in stock | View |
