TECH PUBLICDatasheet (PDF)

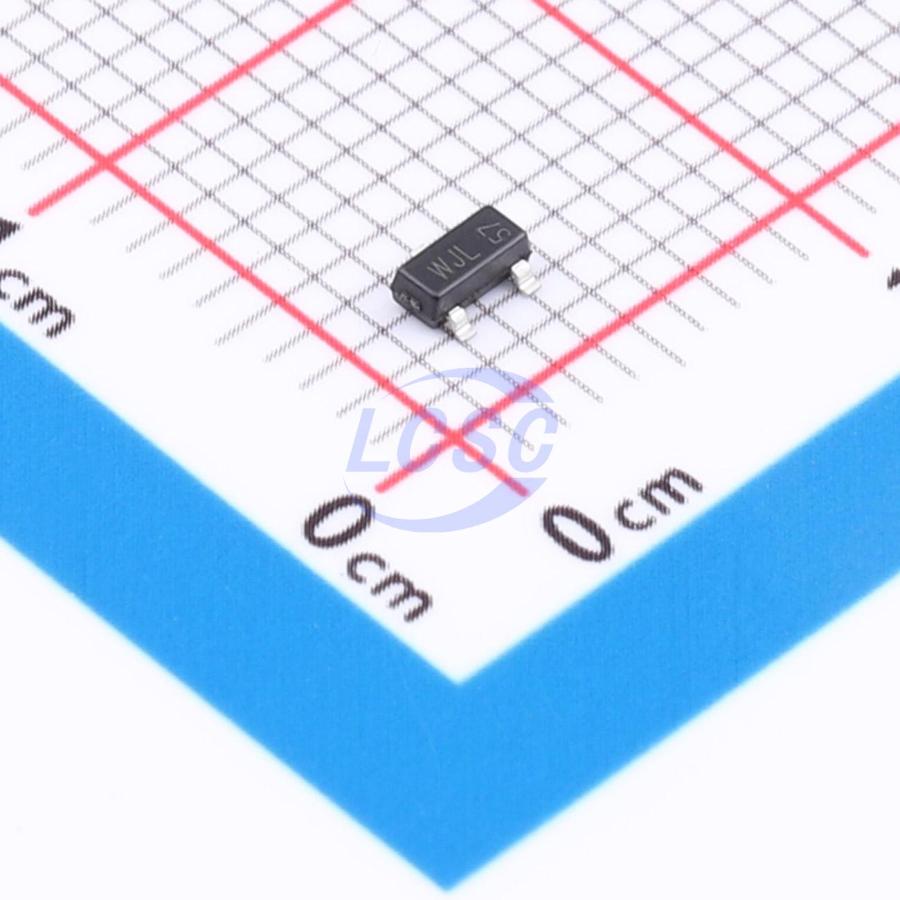

XP264N0301TR-TP
60V 300mA 350mW 1.8Ω@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XP264N0301TR-TP
- Store part #
- C55114437
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C55114437
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.41 | ₹68.20 |
| 200+ | ₹2.65 | ₹530.00 |
| 600+ | ₹2.22 | ₹1,332.00 |
| 3,000+ | ₹1.96 | ₹5,880.00 |
| 9,000+ | ₹1.75 | ₹15,750.00 |
| 21,000+ | ₹1.61 | ₹33,810.00 |
20 × ₹3.41
₹68.20
excl. GST
₹80.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XP264N0301TR-TP
₹68.20 for 20 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 300mA
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 27pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.7nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002P#C52145977TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,200 | ₹2.58 · 3,200 in stock | View |
 | 2N7002HR#C52145978TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,650 | ₹1.98 · 1,650 in stock | View |
 | TPNX6008NBKR#C52205246TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,280 | ₹2.83 · 2,280 in stock | View |
 | NX7002BKR-TP#C52817159TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹2.84 · 3,000 in stock | View |
 | TPMGD780SN#C52817259TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,790 | ₹5.32 · 2,790 in stock | View |
