XNRUSEMI

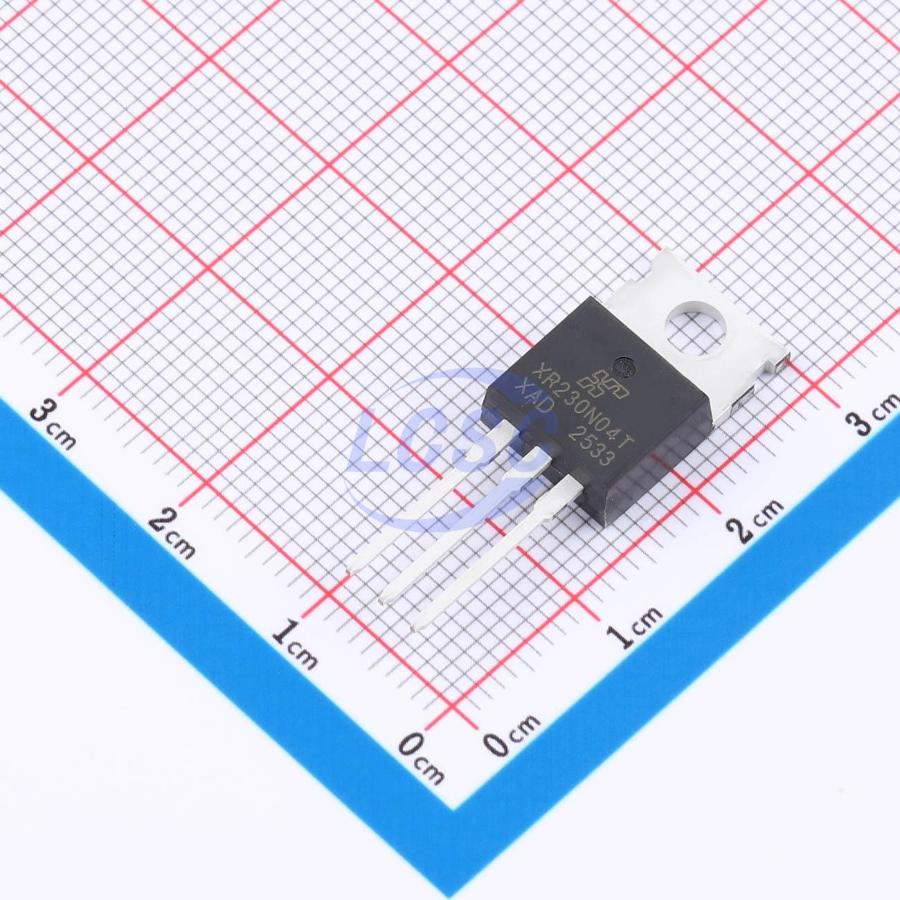

XR230N04T

40V 230A 150W 1.85mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs

TO-220ABRoHSActive

Manufacturer: XNRUSEMI
Manufacturer part #: XR230N04T
Store part #: C52195556
Package / case: TO-220AB
Category: Single FETs, MOSFETs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C52195556

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹64.31	₹64.31
10+	₹51.01	₹510.10
50+	₹45.35	₹2,267.50
100+	₹38.16	₹3,816.00
500+	₹34.89	₹17,445.00
1,000+	₹33.14	₹33,140.00

Quantity (min 1)

1 × ₹64.31

₹64.31

excl. GST

₹75.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

XR230N04T

₹64.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 40V
Current - Continuous Drain(Id): 230A
Output Capacitance(Coss): 675pF
Ciss-Input Capacitance: 10.523nF
Pd - Power Dissipation: 150W
Reverse Transfer Capacitance (Crss): 503pF
RDS(on): 1.85mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 90nC@20V
Gate Threshold Voltage (Vgs(th)): 1.8V
Type: N-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.802 g

Overview

XR230N04T is a high-performance complementary N-channel MOSFET with high cell density, delivering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. XR230N04T is RoHS compliant and meets green product requirements, with 100% guaranteed avalanche ruggedness (EAS) and full functional reliability qualification.
