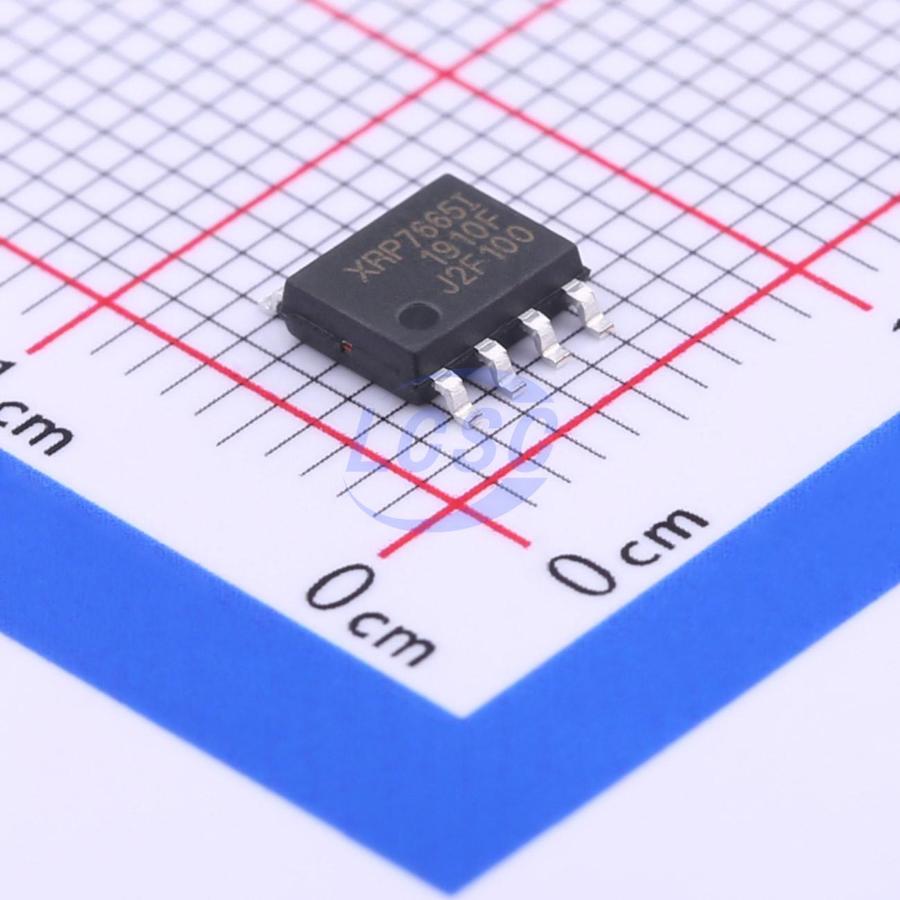

XRP7665IDBTR-F

The XRP7665 is a synchronous current-mode PWM step down (buck) regulator capable of a constant output current up to 3 Amps. A wide 4.50V to 18V input voltage range allows for single supply operations from industry standard 5V and 12V power rails. With a 340kHz constant operating frequency and integrated high and low side 100mΩ/90mΩ MOSFETs, the XRP7665 reduces the overall component count and solution footprint. Current-mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prevents inrush current at turn-on, and in shutdown mode the supply current drops to 0.1μA. Built-in output over voltage (open load), over temperature, cycle-by-cycle over current and under voltage lockout (UVLO) protections insure safe operations under abnormal operating conditions. The XRP7665 is a pin and function compatible device to MP1484 and a 3A pin to pin upgrade to XRP7664. The XRP7665 is offered in a RoHS compliant, “green”/halogen free 8-pin exposed pad SOIC package.

Applications

• Distributed Power Architectures
• Point of Load Converters
• Audio-Video Equipments
• Medical & Industrial Equipments

Key features

• Pin/Function Compatible to MP1484
• 3A Continuous Output Current
• 4.50V to 18V Wide Input Voltage
• PWM Current Mode Control
• 340kHz Constant Operations
• Up to 93% Efficiency
• Adjustable Output Voltage
• 0.925V to 16V Range
• 2.0% Accuracy
• Programmable Soft-Start and Enable Function
• Built-in Thermal, Over Current, UVLO and Output Over Voltage Protections
• RoHS Compliant “Green”/Halogen Free 8-Pin Exposed Pad SOIC Package
