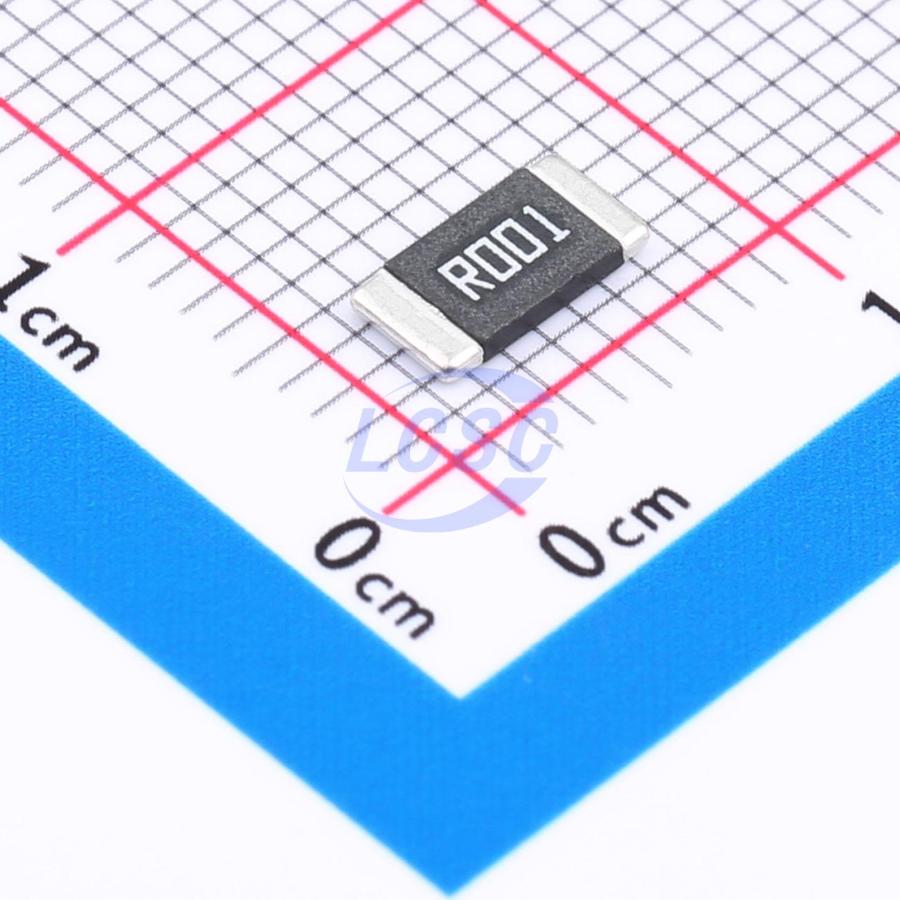

Yezhan

YLRY12-3-1F

1mΩ 3W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount

2512RoHSActive

RES 1mΩ ±1% 3W 2512

Manufacturer: Yezhan
Manufacturer part #: YLRY12-3-1F
Store part #: C20608759
Package / case: 2512
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,395 in stock

#C20608759

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.69	₹53.45
50+	₹8.41	₹420.50
150+	₹7.28	₹1,092.00
500+	₹6.43	₹3,215.00
2,500+	₹5.76	₹14,400.00
4,000+	₹5.41	₹21,640.00

Quantity (min 5, multiples of 5)

5 × ₹10.69

₹53.45

excl. GST

₹63.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

YLRY12-3-1F

₹53.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Resistance: 1mΩ
Power(Watts): 3W
Type: Current Sense Resistor
Tolerance: ±1%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.098 g

Overview

Applications

Current sensing
Overcurrent protection
Servo motor control circuits
Variable frequency power supplies
Electronic control systems
Lithium battery control boards

Key features

Resistance range: 0.5~500mΩ
Tolerance: ±1%, ±2%, ±5%
Power rating: 1W, 2W, 3W
Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
Operating temperature range: -55℃~170℃
Low inductance: 5nH (1MHz)
Insulation resistance: ≥100MΩ
Withstanding voltage: 500V
RoHS compliant
