Yezhan

YLRY12-3-1F-K

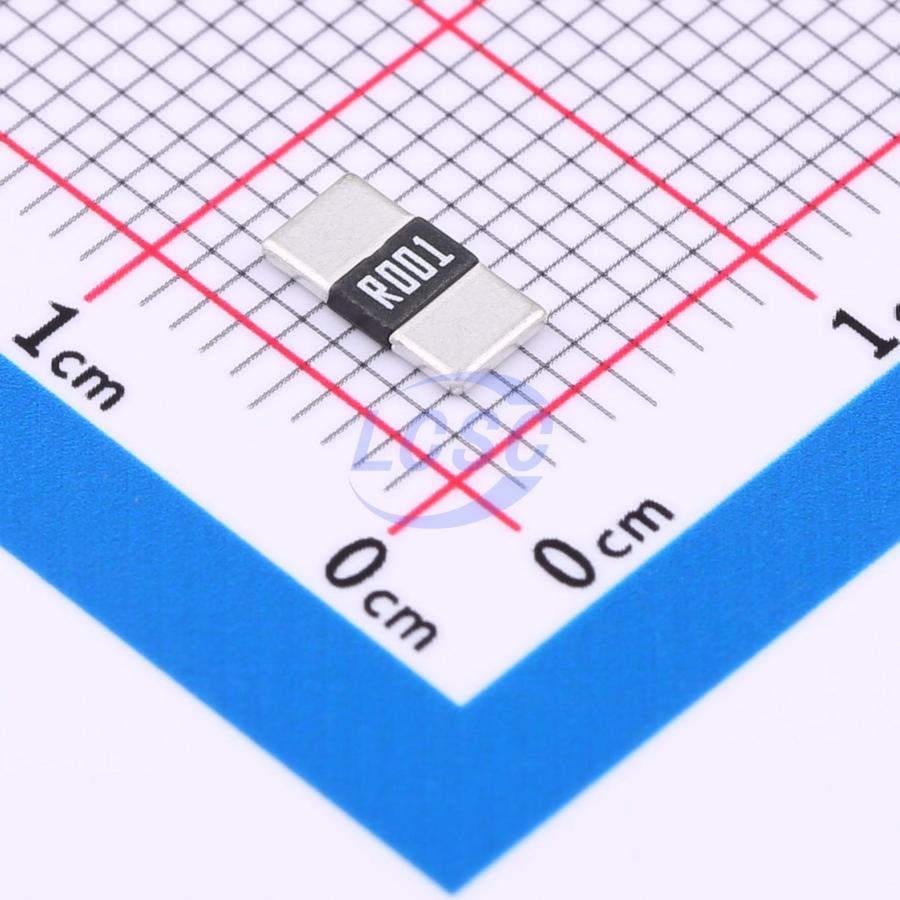

1mΩ 3W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount

2512RoHSActive

RES 1mΩ ±1% 3W 2512

Manufacturer: Yezhan
Manufacturer part #: YLRY12-3-1F-K
Store part #: C20608760
Package / case: 2512
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

52,570 in stock

#C20608760

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.29	₹72.90
100+	₹5.83	₹583.00
300+	₹5.11	₹1,533.00
1,000+	₹4.56	₹4,560.00
4,000+	₹4.13	₹16,520.00
8,000+	₹3.90	₹31,200.00

Quantity (min 10, multiples of 10)

10 × ₹7.29

₹72.90

excl. GST

₹86.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

YLRY12-3-1F-K

₹72.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Resistance: 1mΩ
Power(Watts): 3W
Type: Current Sense Resistor
Tolerance: ±1%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.118 g

Overview

Applications

Current sensing
Overcurrent protection
Servo motor control circuits
Variable frequency power supplies
Electronic control systems
Lithium battery control boards

Key features

Resistance range: 0.5~500mΩ
Tolerance: ±1%, ±2%, ±5%
Power rating: 1W, 2W, 3W
Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
Operating temperature range: -55℃~170℃
Low inductance: 5nH (1MHz)
Insulation resistance: ≥100MΩ
Withstanding voltage: 500V
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	YLRY12-3-1F#C20608759Yezhan · 2512	Yezhan	2512	3,395	₹10.69 · 3,395 in stock	View
	YLR12-3-1F-W#C489551Yezhan · 2512	Yezhan	2512	23,865	₹15.15 · 23,865 in stock	View
