DIODESDatasheet (PDF)

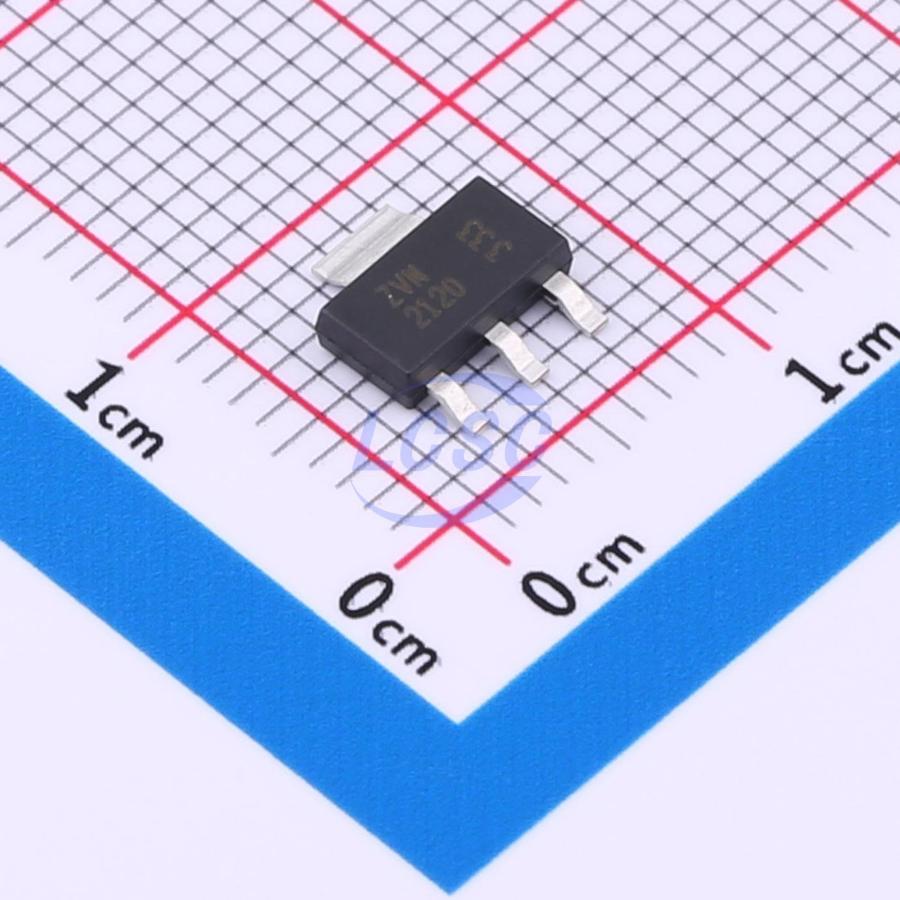

ZVN2120GTA
N-Channel 200V 320mA 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 200V 320mA SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN2120GTA
- Store part #
- C51328
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C51328
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.12 | ₹51.12 |
| 10+ | ₹50.04 | ₹500.40 |
| 30+ | ₹49.39 | ₹1,481.70 |
| 100+ | ₹48.51 | ₹4,851.00 |
1 × ₹51.12
₹51.12
excl. GST
₹60.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZVN2120GTA
₹51.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 20pF
- Current - Continuous Drain(Id)
- 320mA
- Ciss-Input Capacitance
- 85pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 10Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.209 g
Overview
This MOSFET is designed to minimize on-resistance while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC converter
- Automotive solenoid/relay driver
Key features
- Drain-source breakdown voltage V(BR)DSS > 200 V
- On-state resistance RDS(on) ≤ 10 Ω at gate-source voltage VGS = 10 V
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL03N20#C700961HUASHUO · SOT-223 | HUASHUO | SOT-223 | 1,760 | ₹46.75 · 1,760 in stock | View |
 | TPM2001NY3#C7603339TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 215 | ₹18.05 · 215 in stock | View |
 | ZVNL120GTA#C526787DIODES · SOT-223 | DIODES | SOT-223 | 2 | ₹60.42 · 2 in stock | View |
| STN1NF20#C722375ST · SOT-223 | ST | SOT-223 | 9 | ₹126.96 · 9 in stock | View | |
 | HSL1N25#C51025831HUASHUO · SOT-223 | HUASHUO | SOT-223 | 2,335 | ₹30.31 · 2,335 in stock | View |
