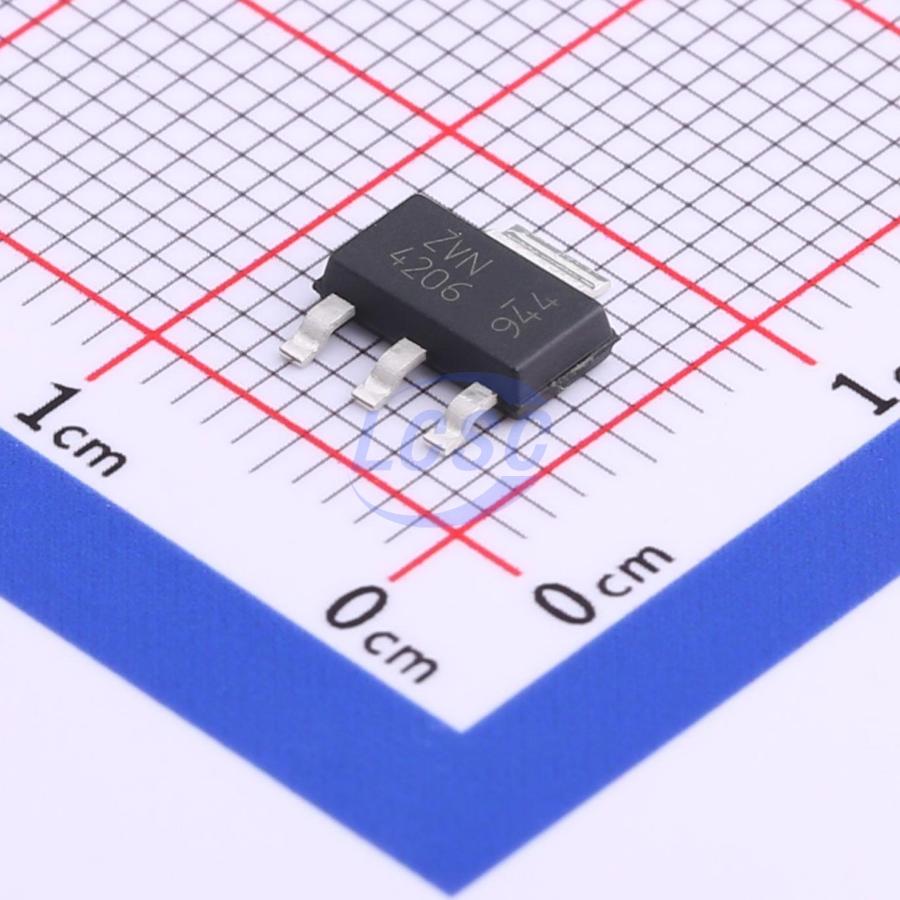

ZVN4206GTA
N-Channel 60V 1A 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 60V 1A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN4206GTA
- Store part #
- C14092
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
714 in stock
#C14092
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.57 | ₹87.57 |
| 10+ | ₹73.23 | ₹732.30 |
| 30+ | ₹67.14 | ₹2,014.20 |
| 100+ | ₹59.54 | ₹5,954.00 |
| 500+ | ₹51.49 | ₹25,745.00 |
| 1,000+ | ₹49.32 | ₹49,320.00 |
1 × ₹87.57
₹87.57
excl. GST
₹103.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZVN4206GTA
₹87.57 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 1A
- Ciss-Input Capacitance
- 100pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 1Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high - efficiency power management applications.
Applications
- DC - DC Converters
- Solenoid / Relay Drivers for Automotive Applications
- Stepper Motor Drivers and Print Head Drivers
Key features
- Compact Geometry
- Fast Switching Speeds
- No Secondary Breakdown and Excellent Temperature Stability
- High Input Impedance and Low Current Drive
- Ease of Paralleling
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ZVN4206GVTA#C5843418DIODES · SOT-223 | DIODES | SOT-223 | 54 | ₹328.43 · 54 in stock | View | |
 | TPM604NY3-1#C7472937TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 390 | ₹16.59 · 390 in stock | View |
 | DMN6068SE-13#C209902DIODES · SOT-223 | DIODES | SOT-223 | 24,340 | ₹35.36 · 24,340 in stock | View |
 | S-LN06N060TZHG#C5273645LRC · SOT-223 | LRC | SOT-223 | 3,900 | ₹44.72 · 3,900 in stock | View |
 | DMN6040SE-13#C3283060DIODES · SOT-223 | DIODES | SOT-223 | 8 | ₹104.53 · 8 in stock | View |
