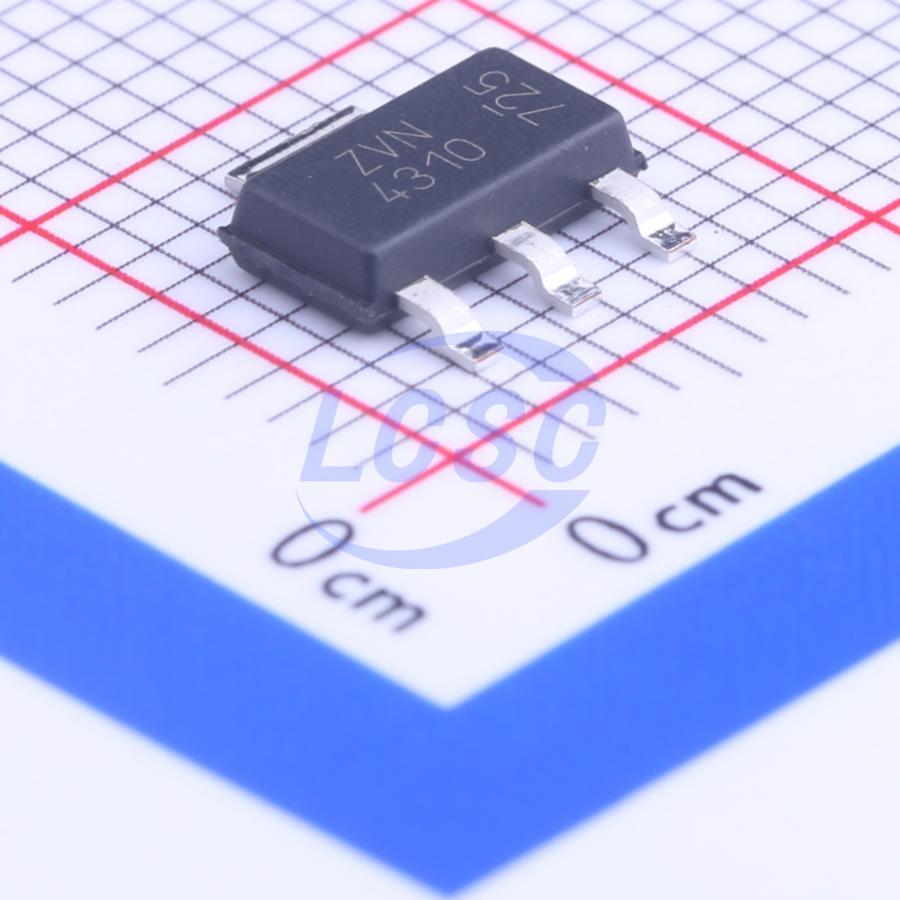

ZVN4310GTA
N-Channel 100V 1.67A 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 100V 1.67A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN4310GTA
- Store part #
- C110534
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C110534
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹416.12 | ₹416.12 |
| 10+ | ₹409.24 | ₹4,092.40 |
| 30+ | ₹404.52 | ₹12,135.60 |
| 100+ | ₹399.80 | ₹39,980.00 |
1 × ₹416.12
₹416.12
excl. GST
₹491.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZVN4310GTA
₹416.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 1.67A
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 540mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This MOSFET is designed to minimize on-resistance while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC converter
- Solenoid/relay driver for automotive applications
Key features
- Drain-source breakdown voltage (BVDSS) > 100 V
- On-resistance (RDS(ON)) ≤ 0.54 Ω at VGS = 10 V
- Maximum continuous drain current (ID) = 1.67 A
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM1004NY3-1#C5122052TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 345 | ₹44.28 · 345 in stock | View |
 | IRFL4315TRPBF#C537930Infineon · SOT-223 | Infineon | SOT-223 | 6,703 | ₹64.32 · 6,703 in stock | View |
 | FDT3612(UMW)#C20617897UMW · SOT-223 | UMW | SOT-223 | 945 | ₹15.39 · 945 in stock | View |
 | ME2612#C2841351MATSUKI · SOT-223 | MATSUKI | SOT-223 | 4 | ₹27.97 · 4 in stock | View |
 | ME2614#C2841352MATSUKI · SOT-223-3 | MATSUKI | SOT-223-3 | 90 | ₹34.78 · 90 in stock | View |
