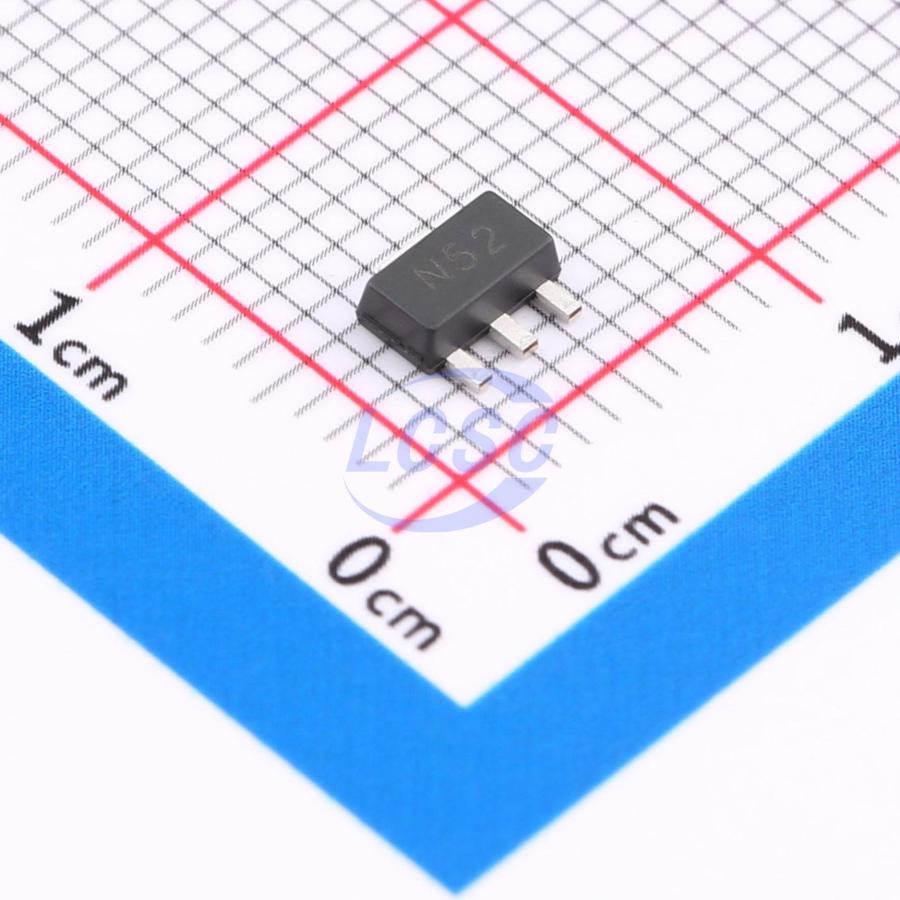

ZVN4525ZTA
N-Channel 250V 240mA 1.2W Surface Mount SOT-89
SOT-89ROHS CompliantActive
MOSFET N-CH 250V 240mA SOT-89
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN4525ZTA
- Store part #
- C145112
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C145112
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.49 | ₹103.49 |
| 10+ | ₹87.44 | ₹874.40 |
| 30+ | ₹79.41 | ₹2,382.30 |
| 100+ | ₹71.60 | ₹7,160.00 |
| 500+ | ₹66.82 | ₹33,410.00 |
| 1,000+ | ₹64.22 | ₹64,220.00 |
1 × ₹103.49
₹103.49
excl. GST
₹122.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZVN4525ZTA
₹103.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 72pF
- Pd - Power Dissipation
- 1.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 240mA
- Reverse Transfer Capacitance (Crss)
- 3.6pF
- RDS(on)
- 9.5Ω@2.4V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.65nC@10V
- Vgs
- 40V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Power Management Functions
- Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc
Key features
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
