MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
DIODESDatasheet (PDF)

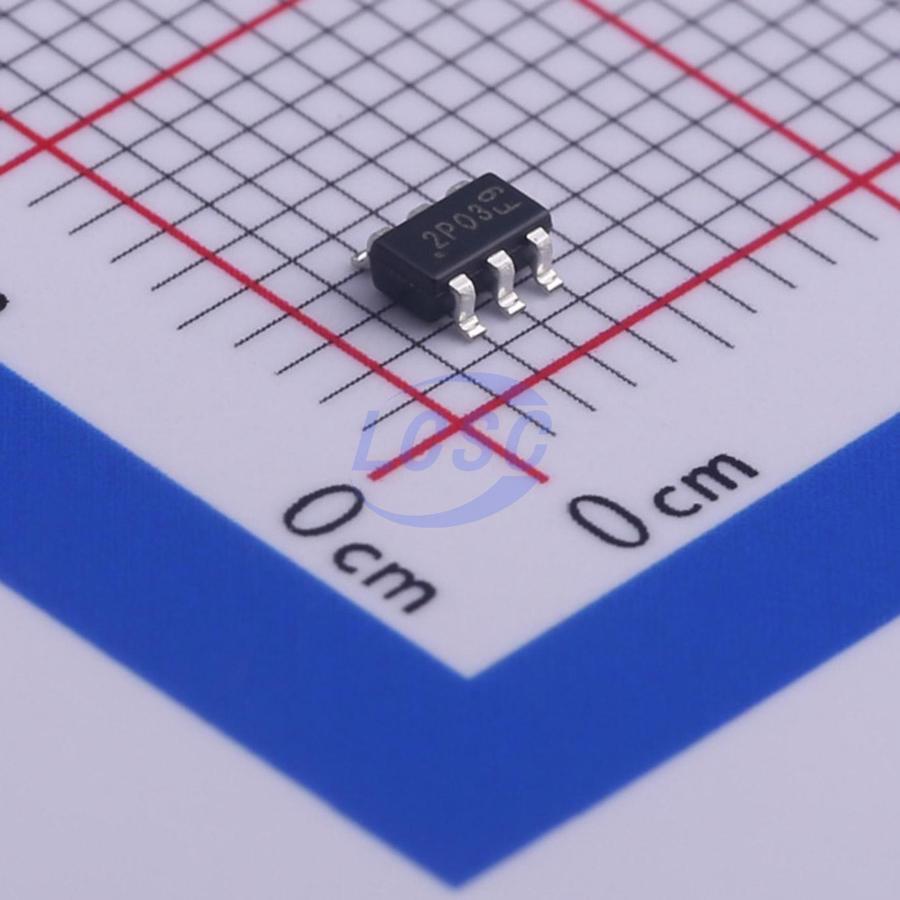

ZXM62P03E6TA
P-Channel 30V 1.5A 625mW Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET P-CH 30V 1.5A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXM62P03E6TA
- Store part #
- C461130
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C461130
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.46 | ₹58.46 |
| 10+ | ₹45.86 | ₹458.60 |
| 30+ | ₹40.42 | ₹1,212.60 |
| 100+ | ₹33.68 | ₹3,368.00 |
| 500+ | ₹29.34 | ₹14,670.00 |
| 1,000+ | ₹27.60 | ₹27,600.00 |
1 × ₹58.46
₹58.46
excl. GST
₹68.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXM62P03E6TA
₹58.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 1.5A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
This MOSFET utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Disconnect Switches
- Motor Control
Key features
- Fast Switching Speed
- Low On-Resistance
- Low Threshold
- Low Gate Drive
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM30V5PS6-2#C5246401TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,000 | ₹20.48 · 1,000 in stock | View |
 | DMP6110SVT-7#C461098DIODES · TSOT-26 | DIODES | TSOT-26 | 1,310 | ₹57.31 · 1,310 in stock | View |
 | CJL3407#C504116JSCJ · SOT-23-6L | JSCJ | SOT-23-6L | On request | ₹12.28 · 0 in stock | View |
 | FH365P#C5159046XIN FEI HONG · SOT-23-6 | XIN FEI HONG | SOT-23-6 | 605 | ₹9.47 · 605 in stock | View |
 | ZXMP3A17E6TA#C154715DIODES · SOT-26 | DIODES | SOT-26 | 1 | ₹72.80 · 1 in stock | View |
