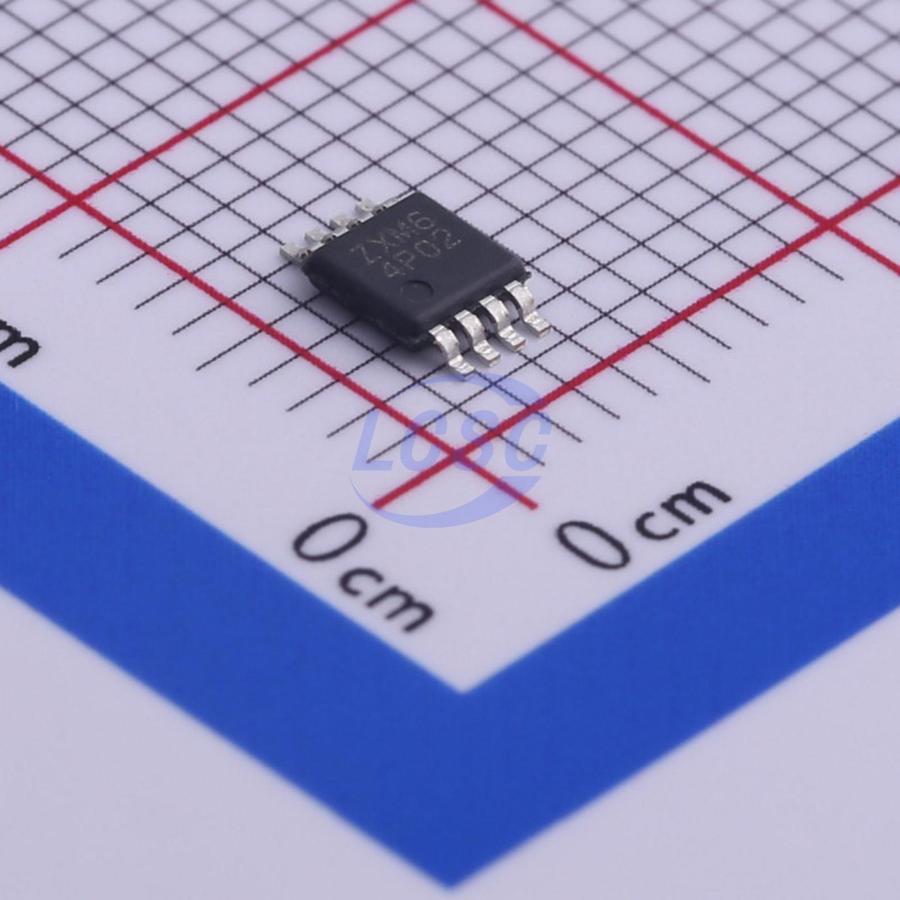

ZXM64P02XTA
P-Channel 20V 3.5A 1.8W Surface Mount MSOP-8
MSOP-8ROHS3 CompliantActive
MOSFET P-CH 20V 3.5A MSOP-8
- Manufacturer
- DIODES
- Manufacturer part #
- ZXM64P02XTA
- Store part #
- C445529
- Package / case
- MSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C445529
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.89 | ₹73.89 |
| 10+ | ₹72.37 | ₹723.70 |
| 30+ | ₹71.28 | ₹2,138.40 |
| 100+ | ₹67.59 | ₹6,759.00 |
1 × ₹73.89
₹73.89
excl. GST
₹87.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXM64P02XTA
₹73.89 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 1.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 90mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.9nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
This new generation of high density MOSFETs utilises a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
Applications
- DC - DC Converters
- Power Management Functions
- Disconnect switches
- Motor control
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- Low profile SOIC package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VBA8338#C52722989VBsemi Elec · MSOP-8 | VBsemi Elec | MSOP-8 | 5 | ₹356.51 · 5 in stock | View | |
 | ZXM64P03XTA#C460273DIODES · MSOP-8 | DIODES | MSOP-8 | On request | ₹115.43 · 0 in stock | View |
| IRF7606TRPBF-VB#C52722986VBsemi Elec · MSOP-8 | VBsemi Elec | MSOP-8 | On request | ₹356.51 · 0 in stock | View | |
| IRF7726TRPBF-VB#C52722987VBsemi Elec · MSOP-8 | VBsemi Elec | MSOP-8 | On request | ₹158.18 · 0 in stock | View | |
