TECH PUBLICDatasheet (PDF)

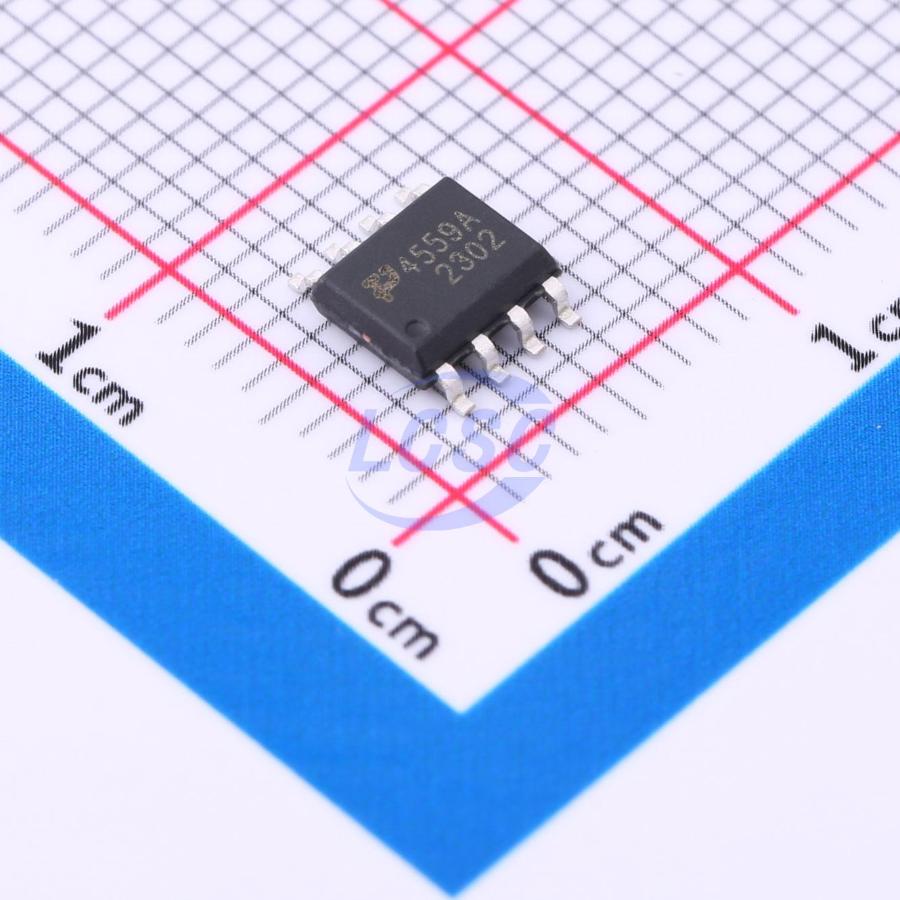

ZXMC4559DN8TA
60V 2W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET 60V SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ZXMC4559DN8TA
- Store part #
- C5123943
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C5123943
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.52 | ₹202.60 |
| 50+ | ₹32.10 | ₹1,605.00 |
| 150+ | ₹28.48 | ₹4,272.00 |
| 500+ | ₹23.97 | ₹11,985.00 |
| 3,000+ | ₹21.96 | ₹65,880.00 |
| 6,000+ | ₹20.76 | ₹1,24,560.00 |
5 × ₹40.52
₹202.60
excl. GST
₹239.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMC4559DN8TA
₹202.60 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 60pF;145pF
- Current - Continuous Drain(Id)
- 6A;5A
- Ciss-Input Capacitance
- 500pF;1.45nF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 25pF;110pF
- RDS(on)
- 30mΩ@10V;88mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 25nC@10V;26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- High power and large current handling capability
- Lead-free product required
- Surface mount package
Key features
- N-Channel VDS = 60V, ID = 6.0A, RDS(ON) < 35mΩ @ VGS = 10V
- P-Channel VDS = -60V, ID = -5A, RDS(ON) < 95mΩ @ VGS = -10V
- High power and current handing capability
- Lead free product is acquired
- Surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS4559#C5123951TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 5,600 | ₹40.22 · 5,600 in stock | View |
 | TPM60NP5S8#C5123938TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,300 | ₹27.36 · 2,300 in stock | View |
 | IRF7343TRPBF#C5123950TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 8,175 | ₹43.69 · 8,175 in stock | View |
 | AO4612#C5123928TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 9,610 | ₹33.66 · 9,610 in stock | View |
