DIODESDatasheet (PDF)

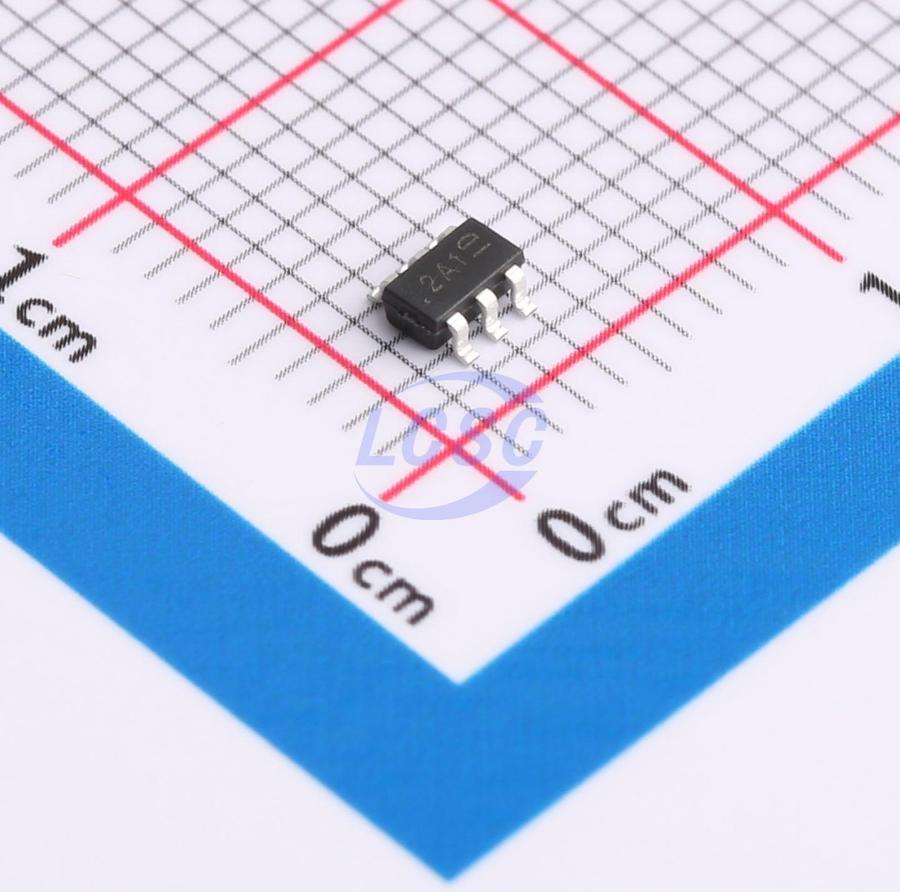

ZXMN2A01E6TA
N-Channel 20V 3.1A 1.1W Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET N-CH 20V 3.1A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2A01E6TA
- Store part #
- C526795
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,426 in stock
#C526795
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.67 | ₹45.67 |
| 10+ | ₹40.22 | ₹402.20 |
| 30+ | ₹37.92 | ₹1,137.60 |
| 100+ | ₹35.19 | ₹3,519.00 |
| 500+ | ₹33.72 | ₹16,860.00 |
| 1,000+ | ₹33.10 | ₹33,100.00 |
1 × ₹45.67
₹45.67
excl. GST
₹53.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2A01E6TA
₹45.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 59pF
- Ciss-Input Capacitance
- 303pF
- Pd - Power Dissipation
- 1.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.1A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 120mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
This new generation of trench MOSFETs utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
Applications
- DC - DC Converters Power Management Functions
- Disconnect Switches
- Motor Control
Key features
- Low On-resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC637AN#C5123941TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 860 | ₹19.82 · 860 in stock | View |
 | SI3456DDV-T1-GE3#C145273VISHAY · TSOP-6 | VISHAY | TSOP-6 | 3,945 | ₹38.06 · 3,945 in stock | View |
 | ZXMN2A03E6TA#C155280DIODES · SOT-26 | DIODES | SOT-26 | 512 | ₹68.89 · 512 in stock | View |
 | STT6N3LLH6#C457495ST · SOT-23-6L | ST | SOT-23-6L | 2,018 | ₹46.64 · 2,018 in stock | View |
 | ME3424D-G#C3647151MATSUKI · TSOP-6 | MATSUKI | TSOP-6 | 25 | ₹14.70 · 25 in stock | View |
