DIODESDatasheet (PDF)

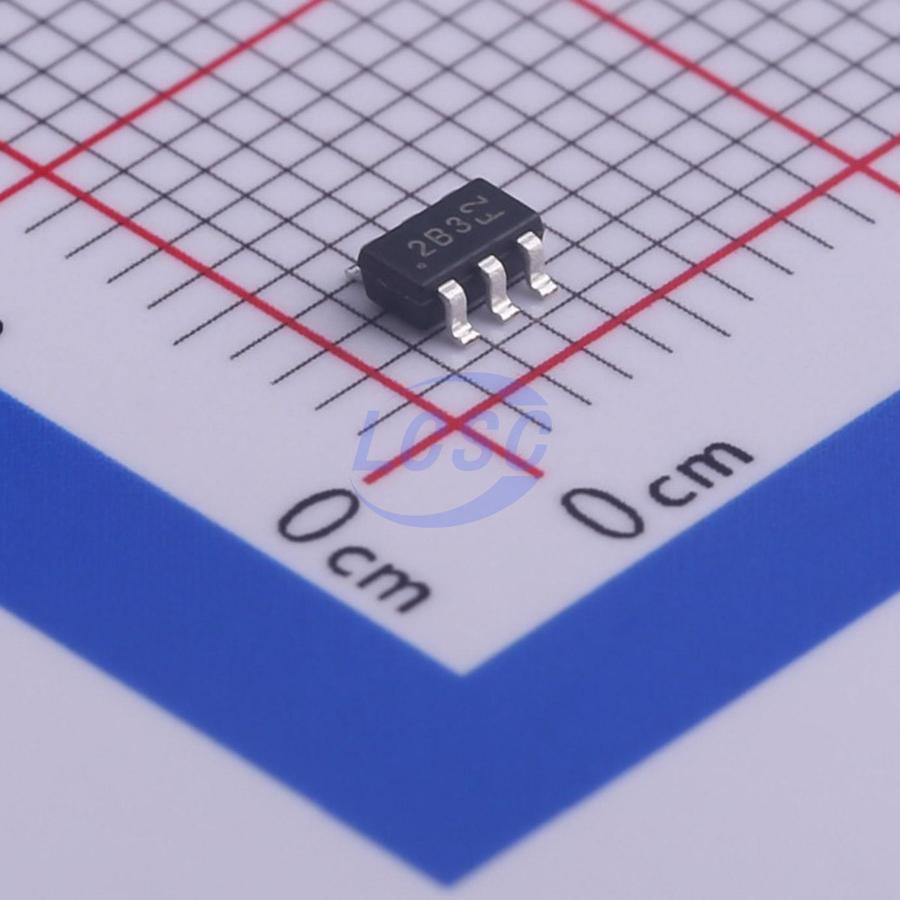

ZXMN2B03E6TA
N-Channel 20V 5.4A 1.1W Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET N-CH 20V 5.4A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2B03E6TA
- Store part #
- C444978
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C444978
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.32 | ₹106.32 |
| 10+ | ₹103.88 | ₹1,038.80 |
| 30+ | ₹102.45 | ₹3,073.50 |
| 100+ | ₹100.84 | ₹10,084.00 |
1 × ₹106.32
₹106.32
excl. GST
₹125.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2B03E6TA
₹106.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 210pF
- Ciss-Input Capacitance
- 1.16nF
- Pd - Power Dissipation
- 1.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5.4A
- Reverse Transfer Capacitance (Crss)
- 136pF
- RDS(on)
- 40mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14.5nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
This new generation trench MOSFET features low onresistance achievable with low gate drive.
Applications
- DC - DC Converters
- Power Management Functions
- Disconnect Switches
- Motor Control
Key features
- Low On-resistance
- Fast Switching Speed
- Low Gate Drive Capability
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FH8810#C2928992XIN FEI HONG · SOT-23-6 | XIN FEI HONG | SOT-23-6 | 1,180 | ₹4.87 · 1,180 in stock | View |
 | PMN30UNH#C3281926Nexperia · TSOP-6 | Nexperia | TSOP-6 | 2,980 | ₹29.04 · 2,980 in stock | View |
 | FDC637AN#C479707onsemi · SuperSOT-6 | onsemi | SuperSOT-6 | 130 | ₹28.48 · 130 in stock | View |
 | FH8815#C2928997XIN FEI HONG · SOT-23-6 | XIN FEI HONG | SOT-23-6 | 90 | ₹5.79 · 90 in stock | View |
 | STT6N3LLH6#C457495ST · SOT-23-6L | ST | SOT-23-6L | 2,018 | ₹46.64 · 2,018 in stock | View |
