DIODESDatasheet (PDF)

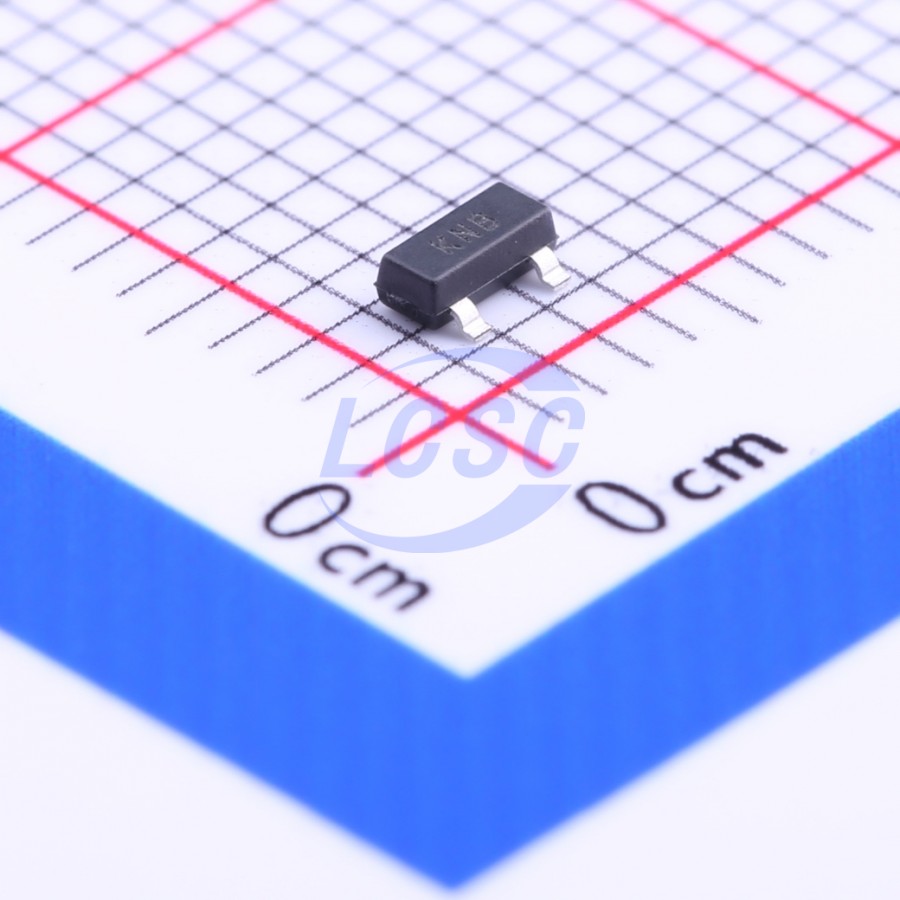

ZXMN2F34FHTA
N-Channel 20V 4A 1.4W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2F34FHTA
- Store part #
- C150479
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C150479
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.16 | ₹145.80 |
| 50+ | ₹23.15 | ₹1,157.50 |
| 150+ | ₹20.57 | ₹3,085.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
| 3,000+ | ₹15.93 | ₹47,790.00 |
| 6,000+ | ₹15.07 | ₹90,420.00 |
5 × ₹29.16
₹145.80
excl. GST
₹172.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2F34FHTA
₹145.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 277pF
- Pd - Power Dissipation
- 1.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 120mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This new generation Trench MOSFET features low onresistance achievable with low (2.5V) gate drive.
Applications
- Buck/Boost DC-DC Converters
- Motor Control
- LED Lighting
Key features
- Low on-resistance
- 2.5V gate drive capability
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2302T2#C41354906Siliup · SOT-23 | Siliup | SOT-23 | 3,000 | ₹4.10 · 3,000 in stock | View |
 | AO3402#C382313KEXIN · SOT-23 | KEXIN | SOT-23 | 1,660 | ₹5.07 · 1,660 in stock | View |
 | KO3402#C489373KEXIN · SOT-23-3 | KEXIN | SOT-23-3 | 40 | ₹8.33 · 40 in stock | View |
 | KIA3402#C116048KIA Semicon Tech · SOT-23 | KIA Semicon Tech | SOT-23 | 39 | ₹4.22 · 39 in stock | View |
 | DMN3404L-7-ES#C21713844ElecSuper · SOT-23 | ElecSuper | SOT-23 | 2,400 | ₹5.07 · 2,400 in stock | View |
