DIODESDatasheet (PDF)

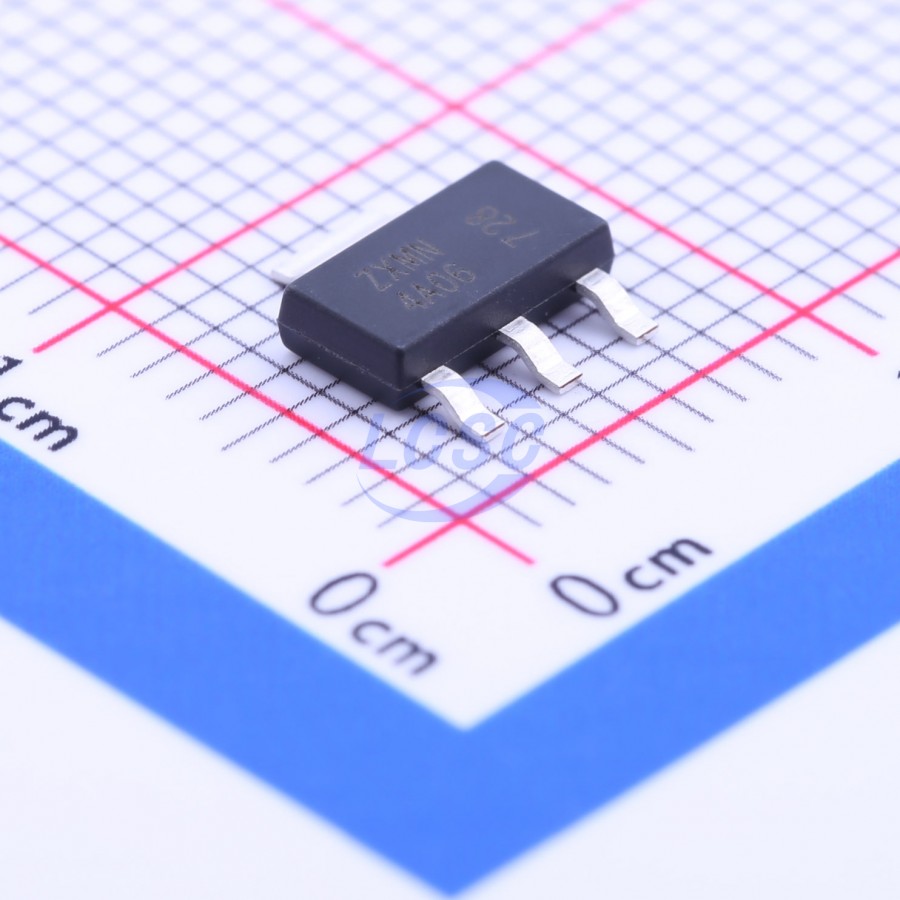

ZXMN4A06GTA
N-Channel 40V 7A 2W Surface Mount SOT-223
SOT-223ROHS CompliantActive
MOSFET N-CH 40V 7A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN4A06GTA
- Store part #
- C155253
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
723 in stock
#C155253
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.89 | ₹204.89 |
| 10+ | ₹169.56 | ₹1,695.60 |
| 30+ | ₹150.04 | ₹4,501.20 |
| 100+ | ₹128.15 | ₹12,815.00 |
| 500+ | ₹108.63 | ₹54,315.00 |
| 1,000+ | ₹104.08 | ₹1,04,080.00 |
1 × ₹204.89
₹204.89
excl. GST
₹241.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMN4A06GTA
₹204.89 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 92pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 770pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 61pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC converter
- Audio output stage
- Relay and solenoid drive
- Motor control
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
- High reliability meeting JEDEC standards (as referenced in AEC-Q)
- Automotive-grade version available (ZXMN4A06GQ), covered by a separate datasheet
