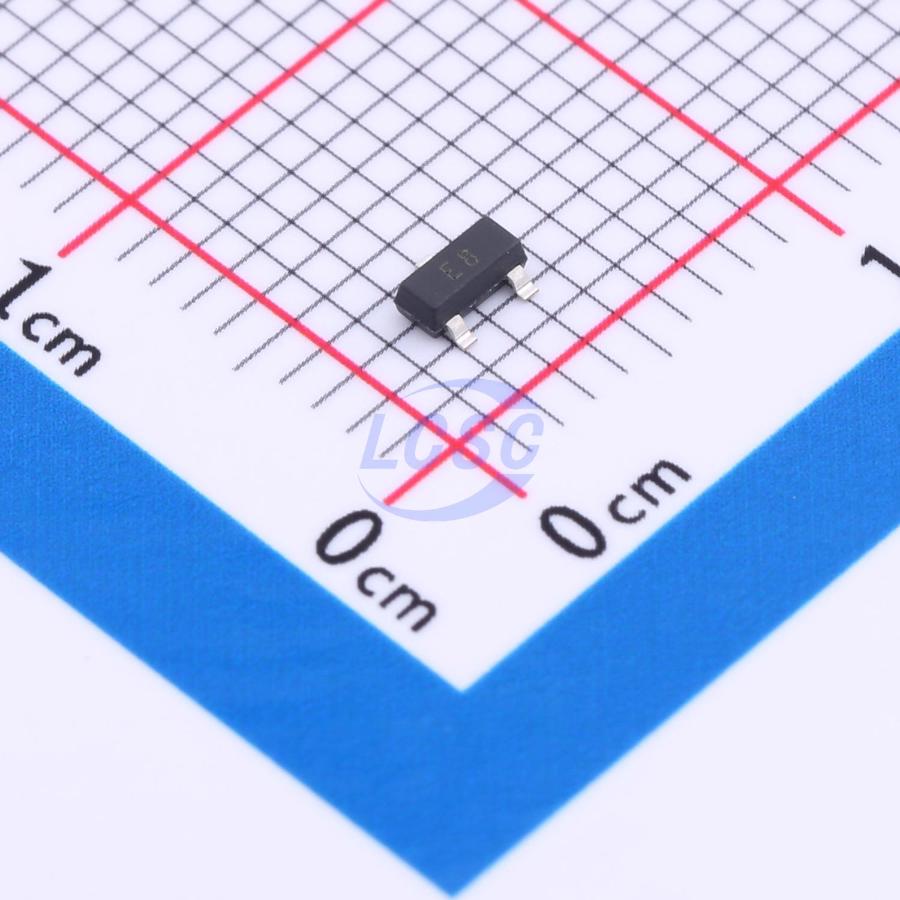

ZXMN6A07FTA
60V 3A 0.35W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 60V 3A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ZXMN6A07FTA
- Store part #
- C5122066
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C5122066
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.17 | ₹105.85 |
| 50+ | ₹16.79 | ₹839.50 |
| 150+ | ₹14.91 | ₹2,236.50 |
| 500+ | ₹12.57 | ₹6,285.00 |
| 3,000+ | ₹10.72 | ₹32,160.00 |
| 6,000+ | ₹10.08 | ₹60,480.00 |
5 × ₹21.17
₹105.85
excl. GST
₹124.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN6A07FTA
₹105.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 34pF
- Ciss-Input Capacitance
- 247pF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 19.5pF
- RDS(on)
- 125mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable
- Logic Level Shift
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3422#C5122003TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 11,050 | ₹8.36 · 11,050 in stock | View |
 | AP2310GN#C5122010TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 10,910 | ₹9.34 · 10,910 in stock | View |
 | DMN6075S#C5122015TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,360 | ₹8.85 · 4,360 in stock | View |
 | DMN6140L#C5122016TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,310 | ₹8.80 · 3,310 in stock | View |
 | SI2308A#C5122030TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,795 | ₹9.35 · 2,795 in stock | View |
