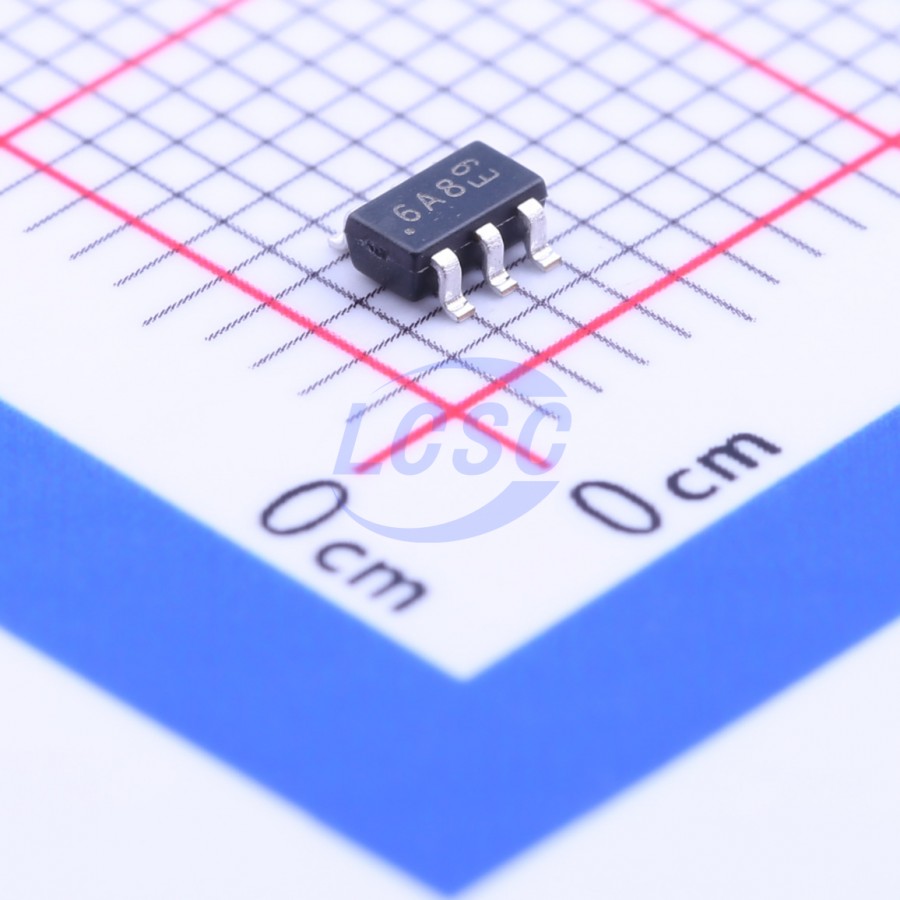

ZXMN6A08E6TA
N-Channel 60V 3.5A 1.7W Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET N-CH 60V 3.5A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN6A08E6TA
- Store part #
- C155282
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C155282
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.13 | ₹87.13 |
| 10+ | ₹68.02 | ₹680.20 |
| 30+ | ₹59.97 | ₹1,799.10 |
| 100+ | ₹49.76 | ₹4,976.00 |
| 500+ | ₹45.19 | ₹22,595.00 |
| 1,000+ | ₹42.59 | ₹42,590.00 |
1 × ₹87.13
₹87.13
excl. GST
₹102.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN6A08E6TA
₹87.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 44.2pF
- Ciss-Input Capacitance
- 459pF
- Pd - Power Dissipation
- 1.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 24.1pF
- RDS(on)
- 150mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Disconnect Switches
- Motor Control
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Gate Drive
- Low Threshold
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VB7638#C480922VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 5 | ₹38.37 · 5 in stock | View |
 | TPM60V4NS6#C5122061TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,473 | ₹21.98 · 2,473 in stock | View |
 | AO6420#C5122009TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 205 | ₹27.16 · 205 in stock | View |
 | FDC5612#C5122019TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,435 | ₹31.17 · 2,435 in stock | View |
 | FDC5661N#C5122020TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,580 | ₹29.00 · 1,580 in stock | View |
