MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

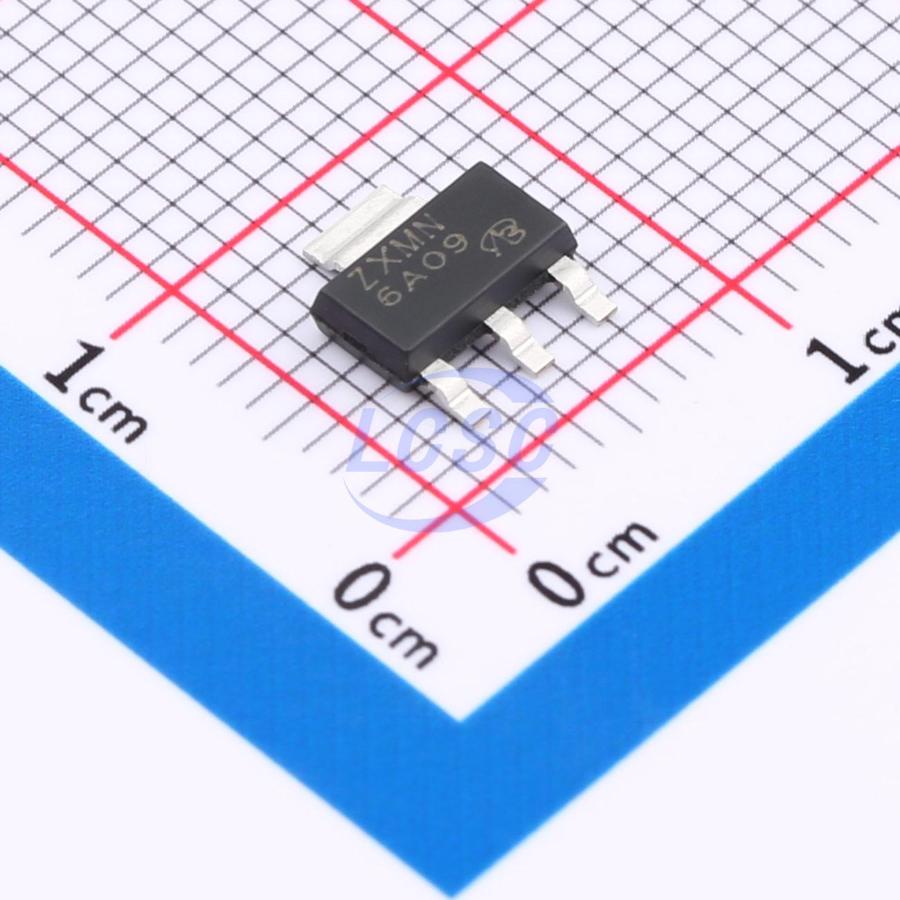

ZXMN6A09GTA-VB
N-Channel 60V 6A 3.3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET N-CH 60V 6A SOT-223
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ZXMN6A09GTA-VB
- Store part #
- C7429165
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C7429165
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.40 | ₹66.40 |
| 10+ | ₹53.34 | ₹533.40 |
| 30+ | ₹47.91 | ₹1,437.30 |
| 100+ | ₹40.93 | ₹4,093.00 |
| 500+ | ₹33.96 | ₹16,980.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹66.40
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMN6A09GTA-VB
₹66.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6A
- Pd - Power Dissipation
- 3.3W
- Reverse Transfer Capacitance (Crss)
- 5.3pF
- RDS(on)
- 28mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFETs
- 175 °C Maximum Junction Temperature
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9832-55-VB#C693390VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 3 | ₹68.90 · 3 in stock | View |
| BUK9840-55/CUX-VB#C52148709VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 10 | ₹66.40 · 10 in stock | View | |
 | HUFA75309T3ST-VB#C29778825VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 20 | ₹58.19 · 20 in stock | View |
 | BUK9832-55A/CUX-VB#C45662540VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 385 | ₹63.80 · 385 in stock | View |
 | BUK9832-55A-VB#C5438930VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 16 | ₹73.81 · 16 in stock | View |
