DIODESDatasheet (PDF)

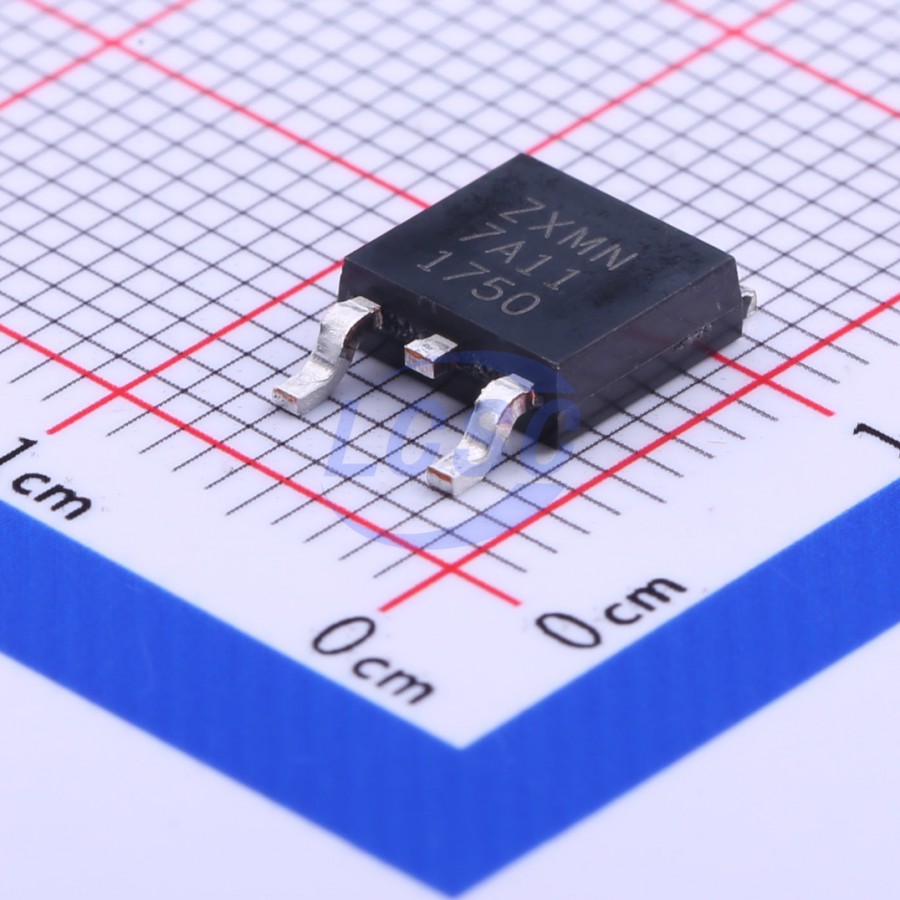

ZXMN7A11KTC
N-Channel 70V 6.1A 68W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 70V 6.1A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN7A11KTC
- Store part #
- C211417
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C211417
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.85 | ₹70.85 |
| 10+ | ₹69.33 | ₹693.30 |
| 30+ | ₹68.24 | ₹2,047.20 |
| 100+ | ₹67.16 | ₹6,716.00 |
1 × ₹70.85
₹70.85
excl. GST
₹83.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMN7A11KTC
₹70.85 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 35pF
- Ciss-Input Capacitance
- 298pF
- Pd - Power Dissipation
- 68W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 70V
- Current - Continuous Drain(Id)
- 6.1A
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 190mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
This new generation of trench MOSFETs utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage power management applications.
Applications
- DC-DC converters
- Power management functions
- Disconnect switches
- Motor control
- Class D audio output stages
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- DPAK package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL12N10#C5155433Slkor · TO-252 | Slkor | TO-252 | 1,130 | ₹16.68 · 1,130 in stock | View |
 | NCH75R190S#C54814767NH · TO-252 | NH | TO-252 | 624 | ₹67.87 · 624 in stock | View |
 | WSF15N10A#C719118Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 2,500 | ₹29.64 · 2,500 in stock | View |
| CMD25N10L#C54443153Cmos · TO-252 | Cmos | TO-252 | 200 | ₹23.68 · 200 in stock | View | |
 | HKTD15N10#C5364289Guangdong Hottech · TO-252 | Guangdong Hottech | TO-252 | 2,195 | ₹18.88 · 2,195 in stock | View |
