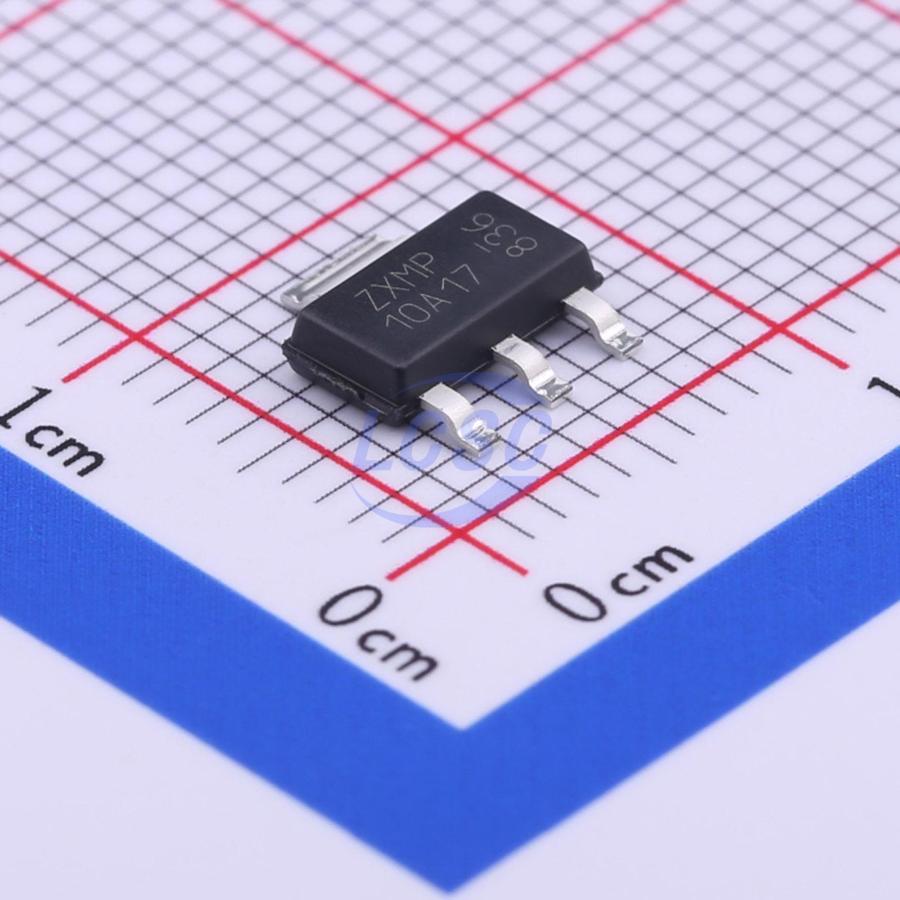

ZXMP10A17GTA
P-Channel 100V 2.4A 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 100V 2.4A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP10A17GTA
- Store part #
- C32998
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
956 in stock
#C32998
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.09 | ₹161.09 |
| 10+ | ₹136.12 | ₹1,361.20 |
| 30+ | ₹123.75 | ₹3,712.50 |
| 100+ | ₹111.37 | ₹11,137.00 |
| 500+ | ₹103.78 | ₹51,890.00 |
| 1,000+ | ₹100.08 | ₹1,00,080.00 |
1 × ₹161.09
₹161.09
excl. GST
₹190.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMP10A17GTA
₹161.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 36.6pF
- Current - Continuous Drain(Id)
- 2.4A
- Ciss-Input Capacitance
- 424pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 29.8pF
- RDS(on)
- 450mΩ@6V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.199 g
Overview
This MOSFET is designed to minimize on-resistance while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor Control
- DC-DC Converter
- Power Management Functions
- Relay and Solenoid Driving
Key features
- Fast switching speed
- Low input capacitance
- Low gate drive
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
- Device meets JEDEC standards (as referenced in AEC-Q) for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
