VBsemi ElecDatasheet (PDF)

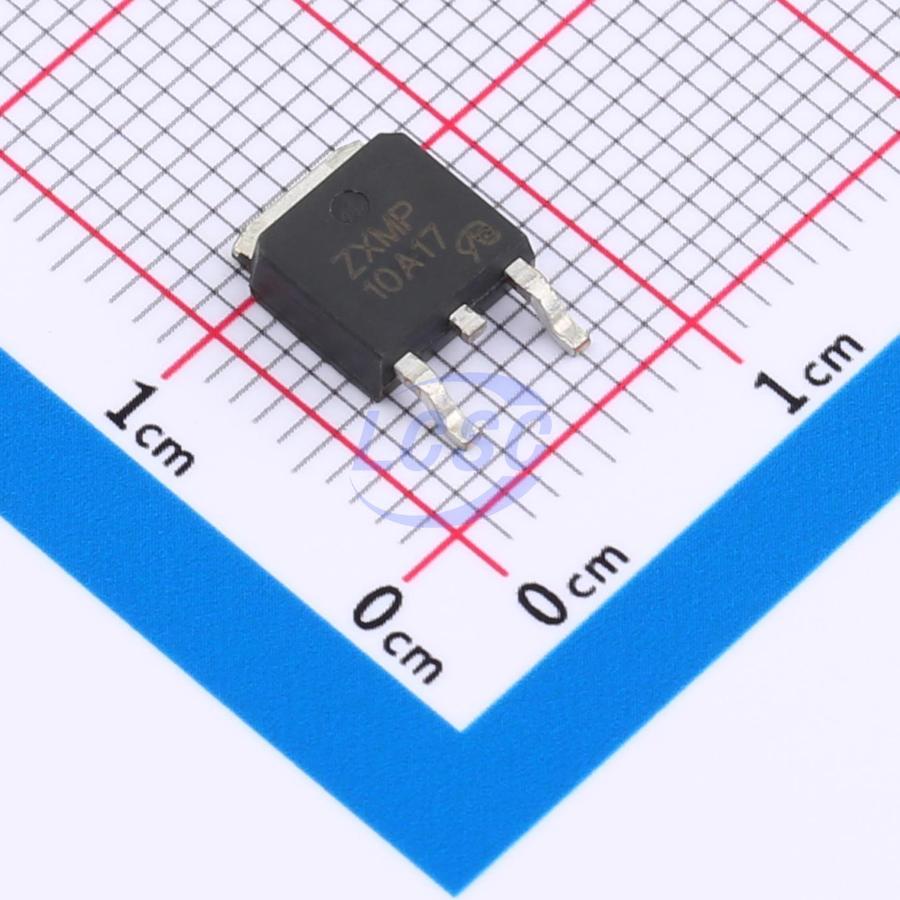

ZXMP10A17KTC-VB
P-Channel 100V 8.8A 2.5W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 100V 8.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ZXMP10A17KTC-VB
- Store part #
- C47993655
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993655
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.97 | ₹74.97 |
| 10+ | ₹58.90 | ₹589.00 |
| 30+ | ₹52.15 | ₹1,564.50 |
| 100+ | ₹43.46 | ₹4,346.00 |
| 500+ | ₹39.56 | ₹19,780.00 |
| 1,000+ | ₹37.39 | ₹37,390.00 |
1 × ₹74.97
₹74.97
excl. GST
₹88.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMP10A17KTC-VB
₹74.97 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 8.8A
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 280mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 34.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
JCW015EPC utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and supports gate voltage operation as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Power Switch - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
