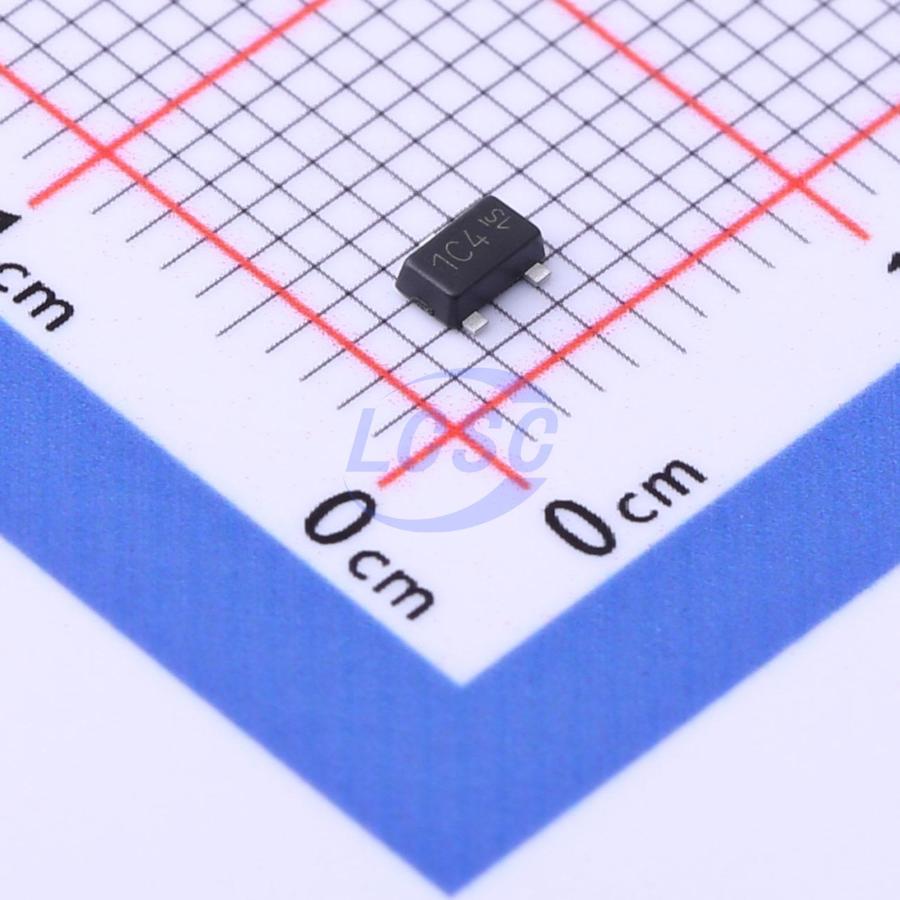

ZXMP2120FFTA
P-Channel 200V 137mA 1W Surface Mount SOT-23F
SOT-23FROHS3 CompliantActive
MOSFET P-CH 200V 137mA SOT-23F
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP2120FFTA
- Store part #
- C460278
- Package / case
- SOT-23F
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
436 in stock
#C460278
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.65 | ₹78.65 |
| 10+ | ₹62.63 | ₹626.30 |
| 30+ | ₹55.69 | ₹1,670.70 |
| 100+ | ₹47.24 | ₹4,724.00 |
| 500+ | ₹43.34 | ₹21,670.00 |
| 1,000+ | ₹40.96 | ₹40,960.00 |
1 × ₹78.65
₹78.65
excl. GST
₹92.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMP2120FFTA
₹78.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 100pF
- Pd - Power Dissipation
- 1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 137mA
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 28Ω@10V
- Number
- 1 P-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
This 200V enhancement mode P-channel MOSFET provides users with a competitive specification offering efficient power handling capability, high impedance and freedom from thermal runaway and thermally induced secondary breakdown. Applications benefiting from this device include a variety of telecom and general high voltage circuits.
Applications
- Active clamping of primary side MOSFETs in 48 volt DC-DC converters
Key features
- High voltage
- Low on-resistance
- Fast switching speed
- Low gate drive
- Low threshold
- SOT23 FLAT package
