MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
DIODESDatasheet (PDF)

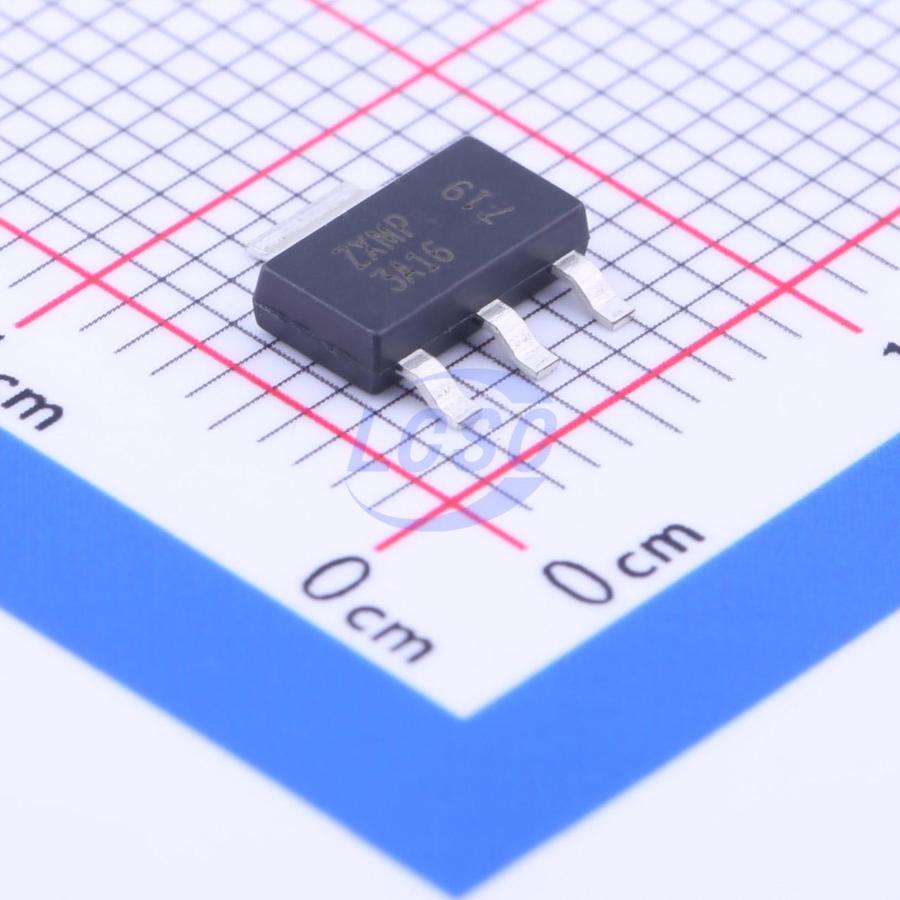

ZXMP3A16GTA
P-Channel 30V 7.5A 2W Surface Mount SOT-223
SOT-223ROHS CompliantActive
MOSFET P-CH 30V 7.5A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP3A16GTA
- Store part #
- C260929
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C260929
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.44 | ₹117.44 |
| 10+ | ₹95.35 | ₹953.50 |
| 30+ | ₹84.29 | ₹2,528.70 |
| 100+ | ₹73.24 | ₹7,324.00 |
| 500+ | ₹66.52 | ₹33,260.00 |
| 1,000+ | ₹63.28 | ₹63,280.00 |
1 × ₹117.44
₹117.44
excl. GST
₹138.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMP3A16GTA
₹117.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 1.022nF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 7.5A
- Reverse Transfer Capacitance (Crss)
- 229pF
- RDS(on)
- 70mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high - efficiency power management applications.
Applications
- Motor Control
- DC-DC Converters
- Power Management Functions
- Relay and Solenoid Driving
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Lead Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL3103#C7543690HUASHUO · SOT-223 | HUASHUO | SOT-223 | 365 | ₹29.08 · 365 in stock | View |
 | HSL6115#C45385110HUASHUO · SOT-223 | HUASHUO | SOT-223 | 1,235 | ₹30.40 · 1,235 in stock | View |
 | XR10P06K#C42457009XNRUSEMI · SOT-223 | XNRUSEMI | SOT-223 | 20 | ₹16.42 · 20 in stock | View |
 | BSP250,115-VB#C52148593VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 74 | ₹63.57 · 74 in stock | View |
 | XR10P10K#C49305566XNRUSEMI · SOT-223 | XNRUSEMI | SOT-223 | 4,910 | ₹17.19 · 4,910 in stock | View |
