HXY MOSFETDatasheet (PDF)

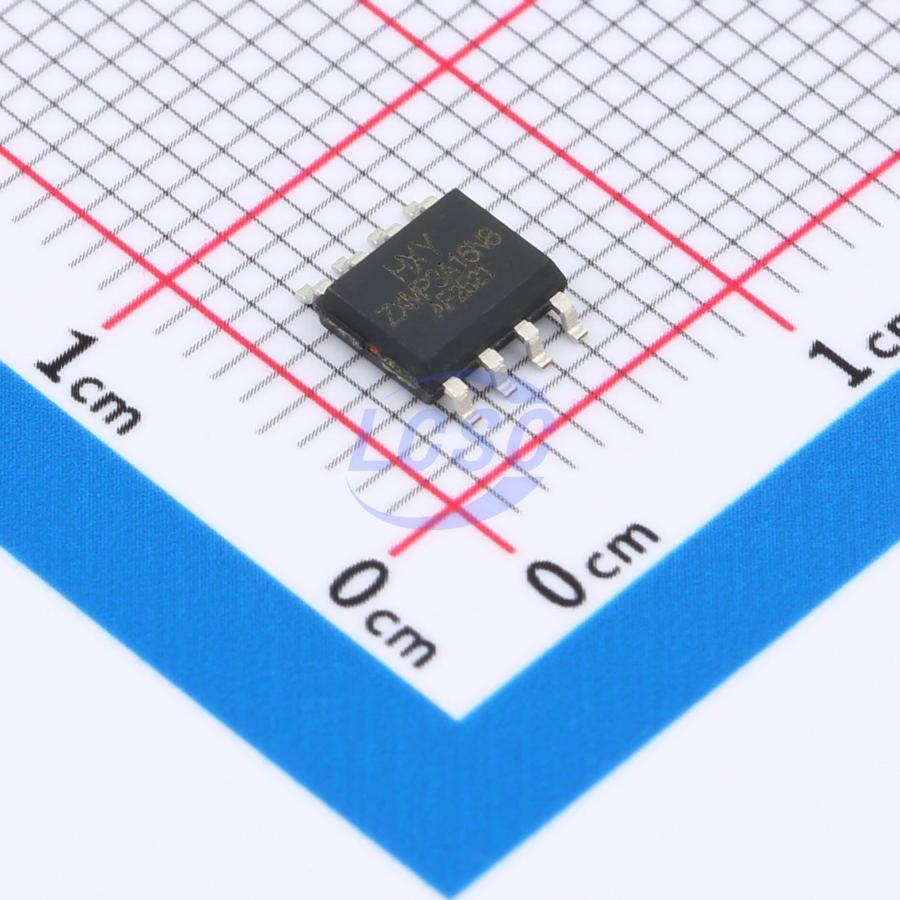

ZXMP3A16N8TA-HXY
30V 5.8A 2.5W 43mΩ@10V 1 P-Channel P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET P-CH 30V 5.8A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ZXMP3A16N8TA-HXY
- Store part #
- C49256423
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C49256423
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.63 | ₹163.15 |
| 50+ | ₹26.13 | ₹1,306.50 |
| 150+ | ₹23.35 | ₹3,502.50 |
| 500+ | ₹19.88 | ₹9,940.00 |
| 3,000+ | ₹18.34 | ₹55,020.00 |
| 6,000+ | ₹17.40 | ₹1,04,400.00 |
5 × ₹32.63
₹163.15
excl. GST
₹192.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMP3A16N8TA-HXY
₹163.15 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.8A
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 520pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 43mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
The ZXMP3A16N8TA utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation down to 2.5V gate voltage. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = -30V, ID = -5.8A
- RDS(ON) < 55mΩ at VGS = 10V
