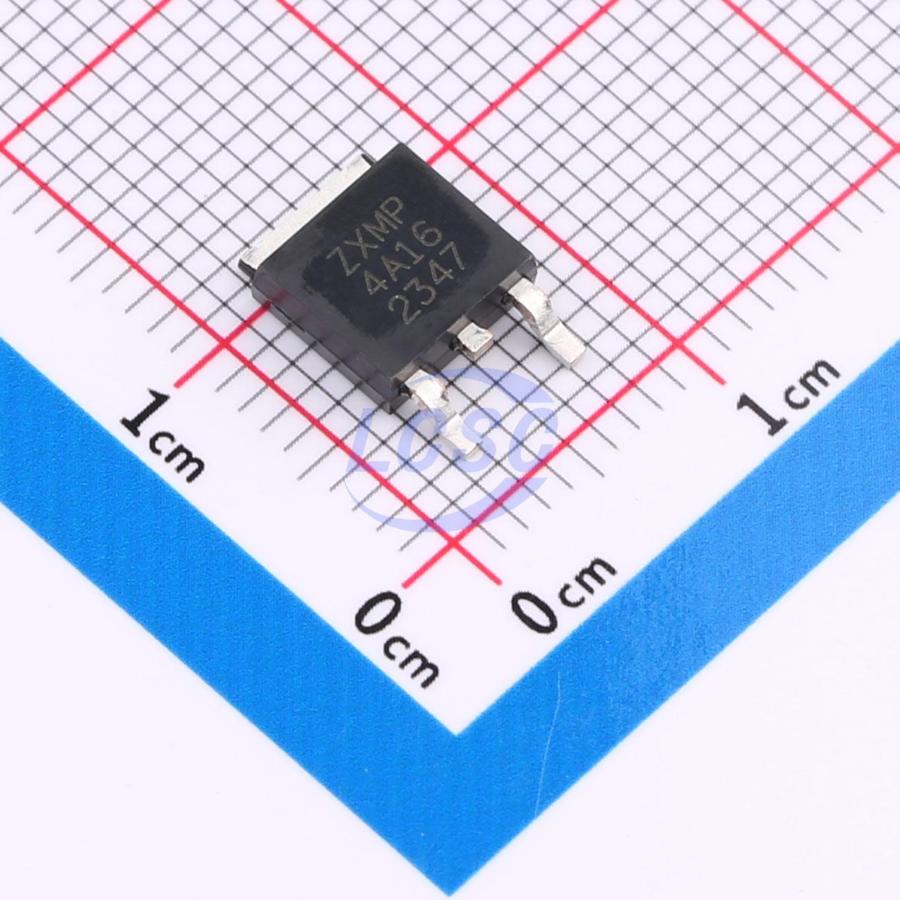

ZXMP4A16KTC
P-Channel 40V 9.9A 9.5W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 40V 9.9A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP4A16KTC
- Store part #
- C154913
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
285 in stock
#C154913
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.48 | ₹110.48 |
| 10+ | ₹92.46 | ₹924.60 |
| 30+ | ₹83.45 | ₹2,503.50 |
| 100+ | ₹74.66 | ₹7,466.00 |
| 500+ | ₹69.30 | ₹34,650.00 |
| 1,000+ | ₹66.51 | ₹66,510.00 |
1 × ₹110.48
₹110.48
excl. GST
₹130.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMP4A16KTC
₹110.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 996pF
- Pd - Power Dissipation
- 9.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 9.9A
- Reverse Transfer Capacitance (Crss)
- 158pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.503 g
Overview
This new generation of trench MOSFETs utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
Applications
- DC - DC converters
- Audio output stages
- Relay and solenoid driving
- Motor control
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- DPAK package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD413A#C5371003TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 1,655 | ₹26.70 · 1,655 in stock | View |
 | 2SJ668-VB#C557925VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 39 | ₹87.42 · 39 in stock | View |
 | 2SJ529S-VB#C709611VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 20 | ₹82.97 · 20 in stock | View |
 | ZXMP6A18KTC#C154895DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 16,755 | ₹94.95 · 16,755 in stock | View |
| DMP4051LK3Q-13#C6183711DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 10 | ₹212.16 · 10 in stock | View | |
