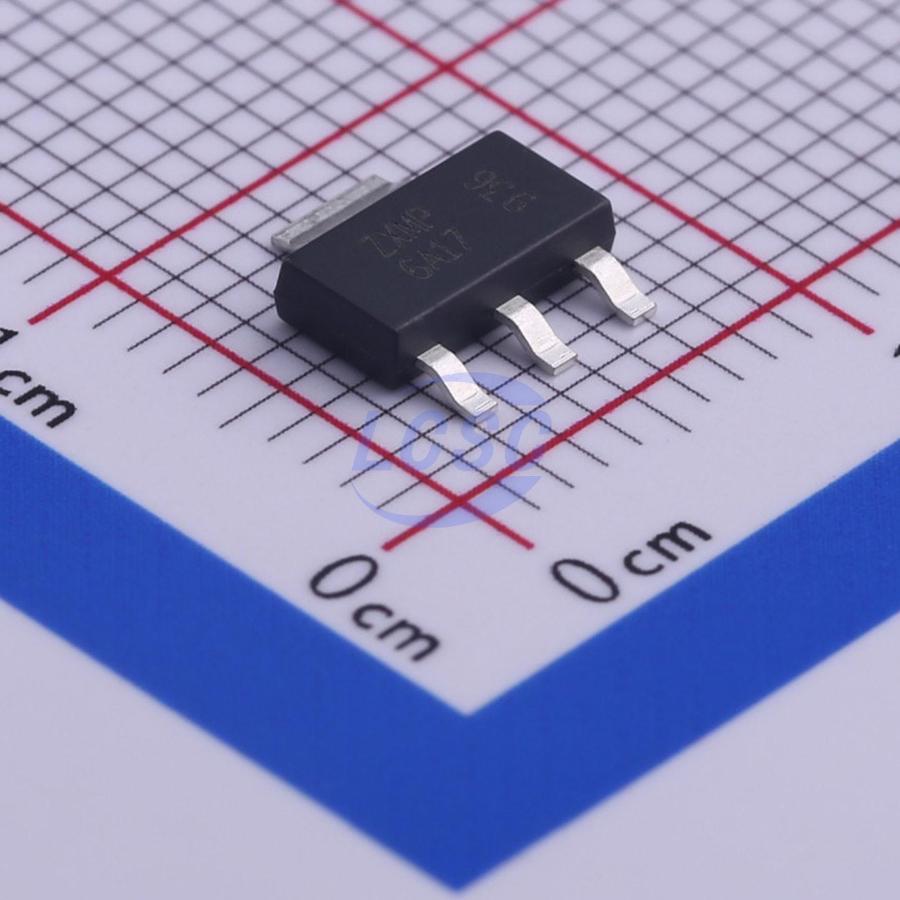

ZXMP6A17GQTA
60V 4.3A 16W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET 60V 4.3A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP6A17GQTA
- Store part #
- C461144
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
183 in stock
#C461144
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.33 | ₹72.33 |
| 10+ | ₹57.30 | ₹573.00 |
| 30+ | ₹51.08 | ₹1,532.40 |
| 100+ | ₹43.14 | ₹4,314.00 |
| 500+ | ₹39.49 | ₹19,745.00 |
| 1,000+ | ₹37.35 | ₹37,350.00 |
1 × ₹72.33
₹72.33
excl. GST
₹85.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMP6A17GQTA
₹72.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 637pF
- Pd - Power Dissipation
- 16W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 4.3A
- Reverse Transfer Capacitance (Crss)
- 53pF
- RDS(on)
- 190mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 9nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
Overview
This MOSFET is designed to minimize the on-state resistance yet maintain superior switching performance, which makes it ideal for high-efficiency power management applications.
Applications
- Motor Control
- DC-DC Converters
- Power Management Functions
- Uninterrupted Power Supply
Key features
- Fast Switching Speed
- Low Gate Drive
- Low Input Capacitance
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPZXMP6A17GTA#C5246412TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 75 | ₹34.97 · 75 in stock | View |
 | TPM614PY3#C5246416TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 185 | ₹18.11 · 185 in stock | View |
 | DMP6185SEG#C5246411TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 965 | ₹17.86 · 965 in stock | View |
 | ZXMP6A17GTA#C154719DIODES · SOT-223 | DIODES | SOT-223 | 10,850 | ₹46.68 · 10,850 in stock | View |
 | IRFL9014#C5246418TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 690 | ₹39.07 · 690 in stock | View |
