DIODESDatasheet (PDF)

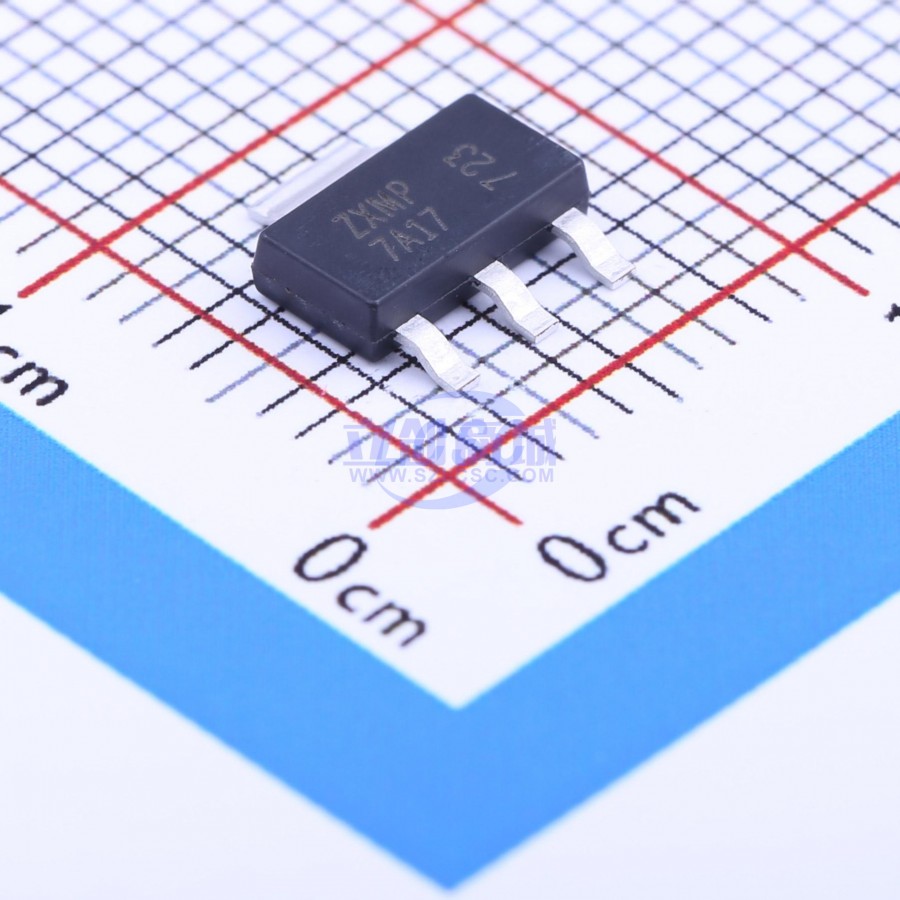

ZXMP7A17GTA
P-Channel 70V 3.7A Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 70V 3.7A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP7A17GTA
- Store part #
- C150741
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
620 in stock
#C150741
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.47 | ₹89.47 |
| 10+ | ₹66.02 | ₹660.20 |
| 30+ | ₹56.03 | ₹1,680.90 |
| 100+ | ₹43.66 | ₹4,366.00 |
| 500+ | ₹38.01 | ₹19,005.00 |
| 1,000+ | ₹34.76 | ₹34,760.00 |
1 × ₹89.47
₹89.47
excl. GST
₹105.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMP7A17GTA
₹89.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 52pF
- Ciss-Input Capacitance
- 635pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 70V
- Current - Continuous Drain(Id)
- 3.7A
- Reverse Transfer Capacitance (Crss)
- 42.5pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Motor Control
- Transformer Driving Switch
- DC-DC Converters
- Power Management Functions
- Uninterrupted Power Supply
Key features
- 100% Unclamped Inductive Switch (UIS) Test in Production
- Low On-Resistance
- Fast Switching Speed
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | G04P10HE#C5162404GOFORD · SOT-223 | GOFORD | SOT-223 | 5 | ₹28.76 · 5 in stock | View |
 | LWS1H150A23#C20630419Lewa Micro · SOT-223 | Lewa Micro | SOT-223 | 2,300 | ₹25.69 · 2,300 in stock | View |
 | ZXMP10A18GTA#C154718DIODES · SOT-223-4 | DIODES | SOT-223-4 | 64 | ₹220.13 · 64 in stock | View |
 | VBJ2102M#C416326VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 73 | ₹74.11 · 73 in stock | View |
 | HSL0115#C45385111HUASHUO · SOT-223 | HUASHUO | SOT-223 | 785 | ₹52.55 · 785 in stock | View |
