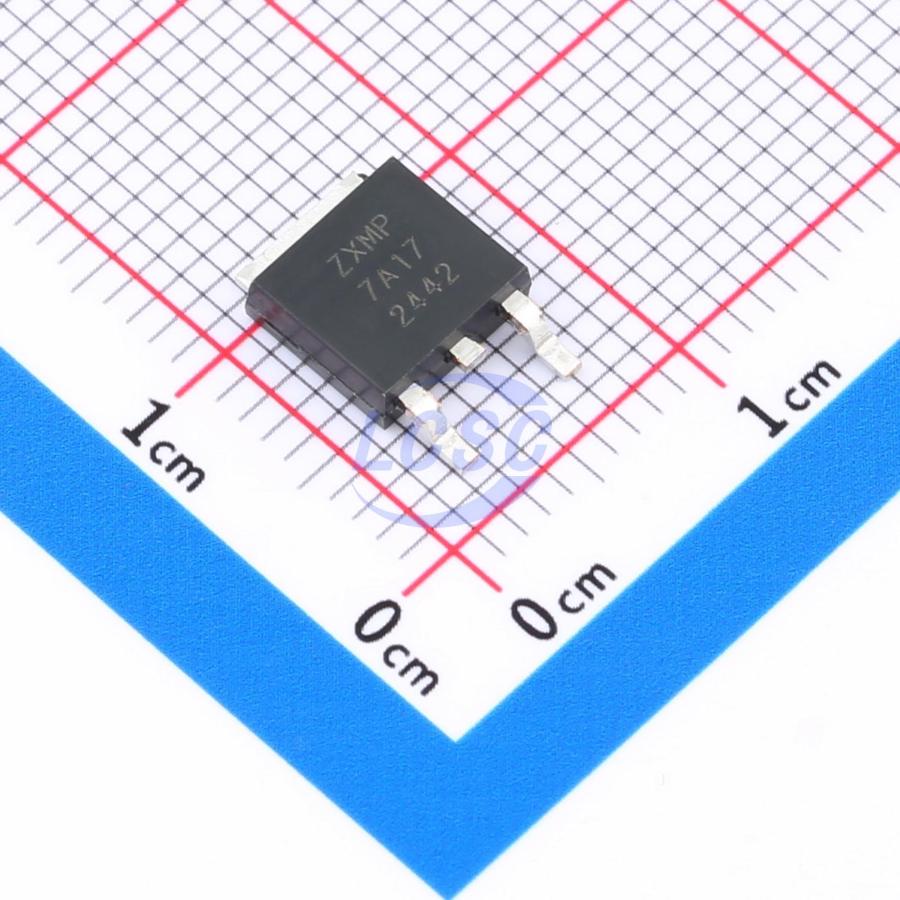

ZXMP7A17KTC
P-Channel 70V 5.7A 9.25W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 70V 5.7A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMP7A17KTC
- Store part #
- C211399
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C211399
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.78 | ₹137.78 |
| 10+ | ₹115.60 | ₹1,156.00 |
| 30+ | ₹104.53 | ₹3,135.90 |
| 100+ | ₹93.44 | ₹9,344.00 |
| 500+ | ₹66.72 | ₹33,360.00 |
| 1,000+ | ₹63.45 | ₹63,450.00 |
1 × ₹137.78
₹137.78
excl. GST
₹162.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMP7A17KTC
₹137.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 52pF
- Ciss-Input Capacitance
- 635pF
- Pd - Power Dissipation
- 9.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 70V
- Current - Continuous Drain(Id)
- 5.7A
- Reverse Transfer Capacitance (Crss)
- 42.5pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
This new generation of trench MOSFETs utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage power management applications.
Applications
- DC-DC converters
- Power management functions
- Disconnect switches
- Motor control
- Class D audio output stages
Key features
- Low on-resistance
- Fast switching speed
- Low threshold
- Low gate drive
- DPAK package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IRFR9110NTRRPBF-VB#C52989009VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹83.60 · 5 in stock | View | |
| MDDG10R160D#C55335524MDD(Microdiode Semiconductor) · TO-252 | MDD(Microdiode Semiconductor) | TO-252 | 2,500 | ₹26.29 · 2,500 in stock | View | |
 | FQD12P10-VB#C878907VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 292 | ₹73.94 · 292 in stock | View |
 | WSF15P10#C148442Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 2,859 | ₹58.53 · 2,859 in stock | View |
 | CMD12P10S#C5203737Cmos · TO-252 | Cmos | TO-252 | 135 | ₹30.42 · 135 in stock | View |
