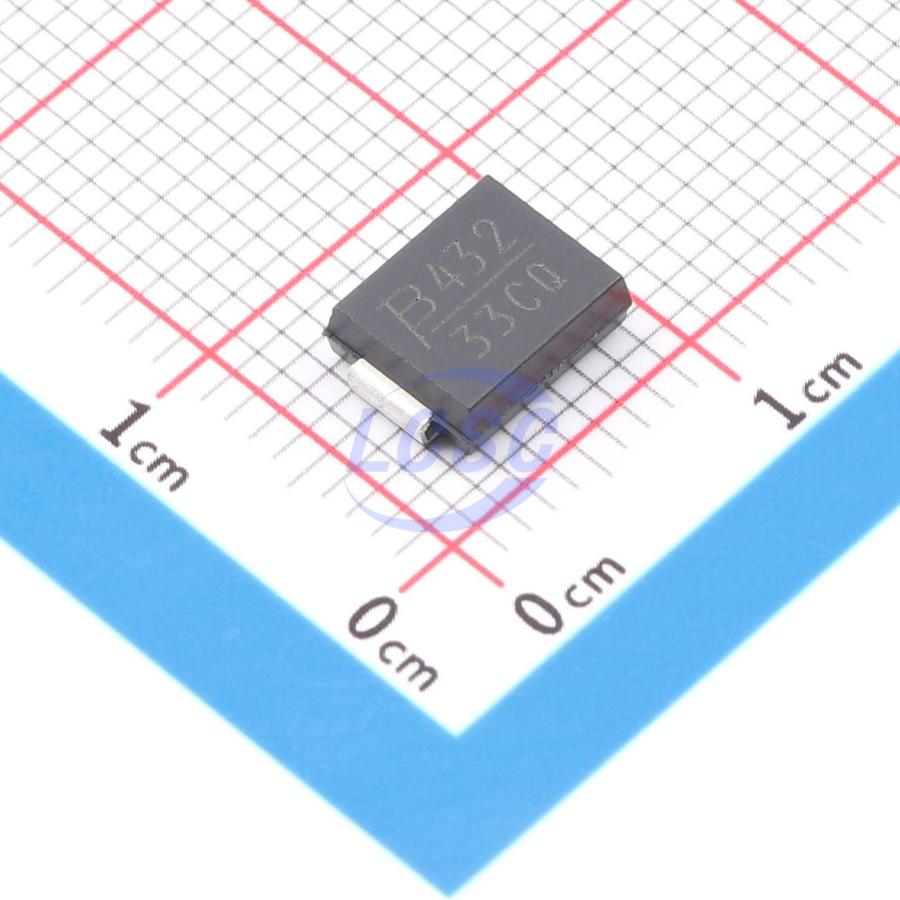

1.5SMC33CA-Q
59.4VC Clamp 166.5A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 28.2VWM 59.4VC SMC(DO-214AB)
- Manufacturer
- BOURNS
- Manufacturer part #
- 1.5SMC33CA-Q
- Store part #
- C1974252
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C1974252
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.02 | ₹98.02 |
| 10+ | ₹96.72 | ₹967.20 |
| 30+ | ₹95.65 | ₹2,869.50 |
| 100+ | ₹94.79 | ₹9,479.00 |
1 × ₹98.02
₹98.02
excl. GST
₹115.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1.5SMC33CA-Q
₹98.02 for 1 + GST
Specifications
- Clamping Voltage
- 59.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 166.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 34.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 28.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC) size format. The Transient Voltage Suppressor series offers a choice of Breakdown Voltages from 6.8 V up to 130 V. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 V to Minimum Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and their fat confguration minimizes roll away.
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom, computer, industrial and consumer electronics applications
Key features
- Surface Mount SMC package
- Breakdown Voltage: 6.8 to 130 volts
- Power Dissipation: 1500 watts
- RoHS compliant and halogen free
- AEC-Q101 compliant
