VISHAYDatasheet (PDF)

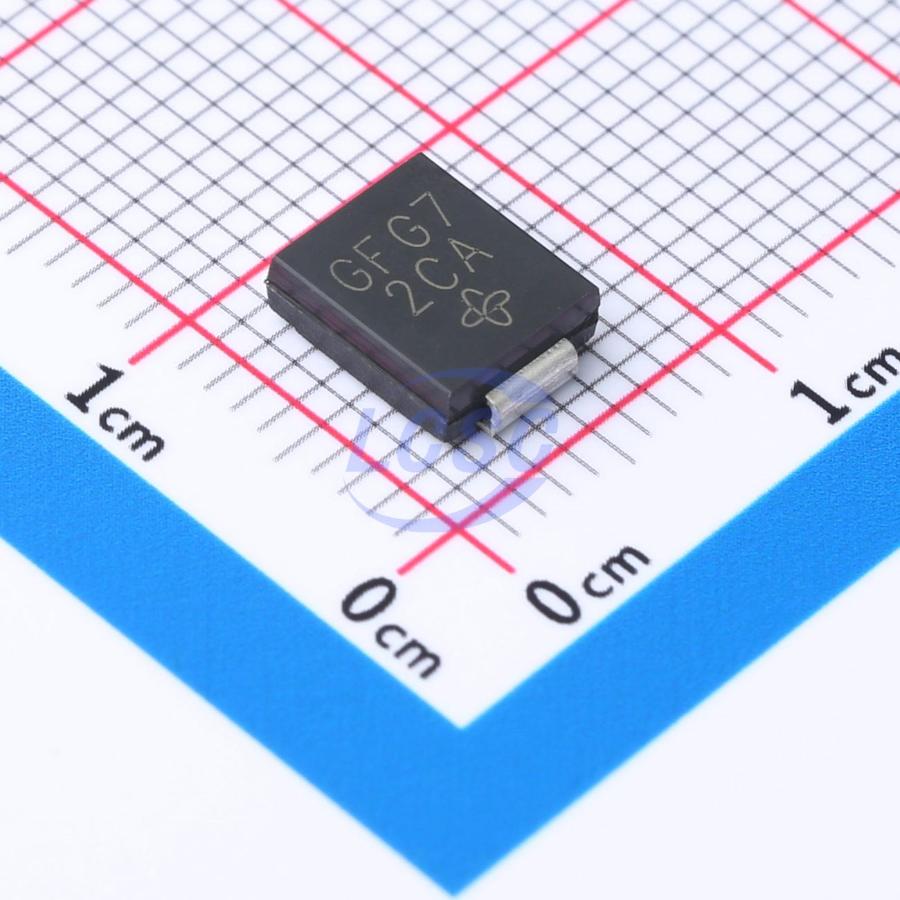

SM15T33CA-E3/57T
59VC Clamp 33A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 28.2VWM 59VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SM15T33CA-E3/57T
- Store part #
- C1973503
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
471 in stock
#C1973503
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.13 | ₹106.13 |
| 10+ | ₹86.60 | ₹866.00 |
| 30+ | ₹77.05 | ₹2,311.50 |
| 100+ | ₹67.29 | ₹6,729.00 |
| 500+ | ₹61.64 | ₹30,820.00 |
| 850+ | ₹58.61 | ₹49,818.50 |
1 × ₹106.13
₹106.13
excl. GST
₹125.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SM15T33CA-E3/57T
₹106.13 for 1 + GST
Specifications
- Clamping Voltage
- 59V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 33A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 28.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.375 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement RoHS
- Glass passivated chip junction COMPLIANT HALOGEN
- Available in uni-directional and bi-directional FREE Available
- 1500 W peak pulse power capability with a 10/1000 μs waveform
- Excellent clamping capability
- Low inductance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMC33CA#C151154Littelfuse · DO-214AB | Littelfuse | DO-214AB | 1,960 | ₹52.13 · 1,960 in stock | View |
 | 1.5SMC33CA-Q#C1974252BOURNS · SMC(DO-214AB) | BOURNS | SMC(DO-214AB) | 90 | ₹98.02 · 90 in stock | View |
 | 1.5SMC36CAHV6G#C3028971Taiwan Semiconductor · DO-214AB(SMC) | Taiwan Semiconductor | DO-214AB(SMC) | 2,020 | ₹23.13 · 2,020 in stock | View |
 | SMCJ30CA-TR#C133648ST · SMC(DO-214AB) | ST | SMC(DO-214AB) | 2,372 | ₹45.52 · 2,372 in stock | View |
 | SMCJ28CA#C2687517Shikues · SMC | Shikues | SMC | 235 | ₹16.31 · 235 in stock | View |
