LittelfuseDatasheet (PDF)
1.5SMC7.5A
11.3VC Clamp 134.5A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 6.4VWM 11.3VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1.5SMC7.5A
- Store part #
- C5275021
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C5275021
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.53 | ₹166.53 |
| 10+ | ₹163.92 | ₹1,639.20 |
| 30+ | ₹162.40 | ₹4,872.00 |
| 100+ | ₹160.67 | ₹16,067.00 |
1 × ₹166.53
₹166.53
excl. GST
₹196.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

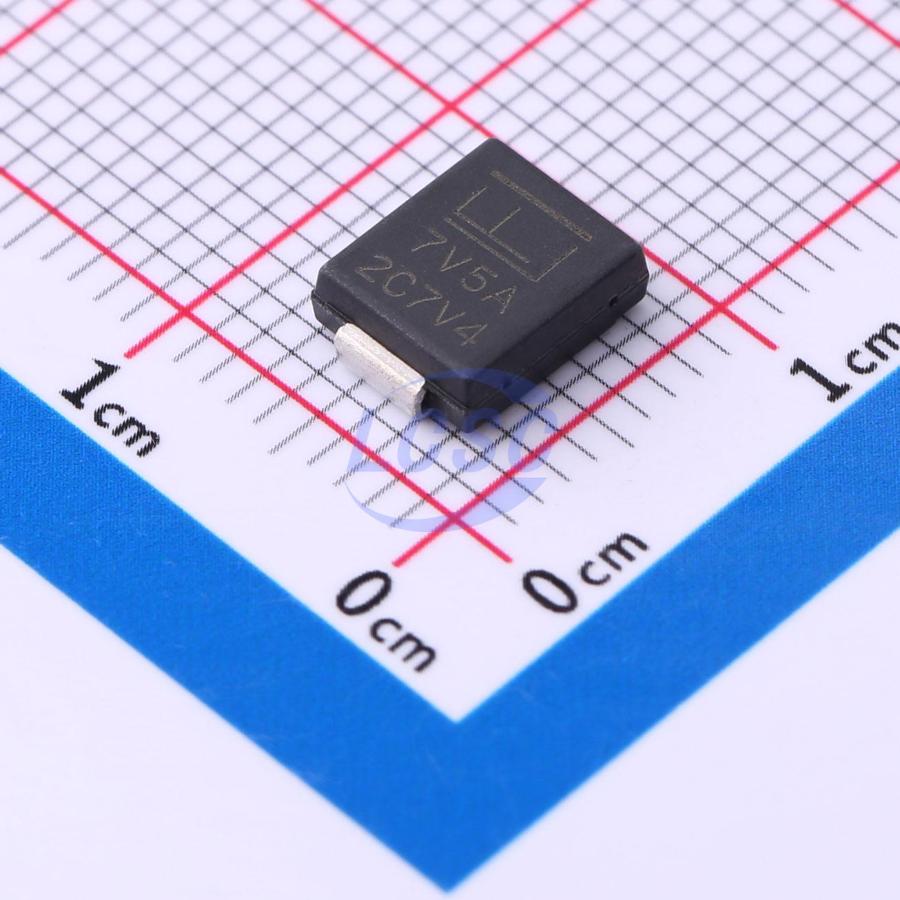

1.5SMC7.5A
₹166.53 for 1 + GST
Specifications
- Clamping Voltage
- 11.3V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 134.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 7.13V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
The 1.5SMC series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 1500V peak pulse power capability at 10/1000us waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 1μA when VBR min>12V
- For surface mounted applications to optimize board space
- Low profile package
- Built-in strain relief
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Fast response time: typically less than 1.0ps from 0V to BV min
- Glass passivated chip junction
- High temperature to reflow soldering guaranteed: 260℃ / 30 sec
- VBR @ TJ = VBR @ 25℃ x (1+αT x (T - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximum peak of 260℃
- Matte tin lead-free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
