LittelfuseDatasheet (PDF)
SMCJ6.5A
11.2VC Clamp 134A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive

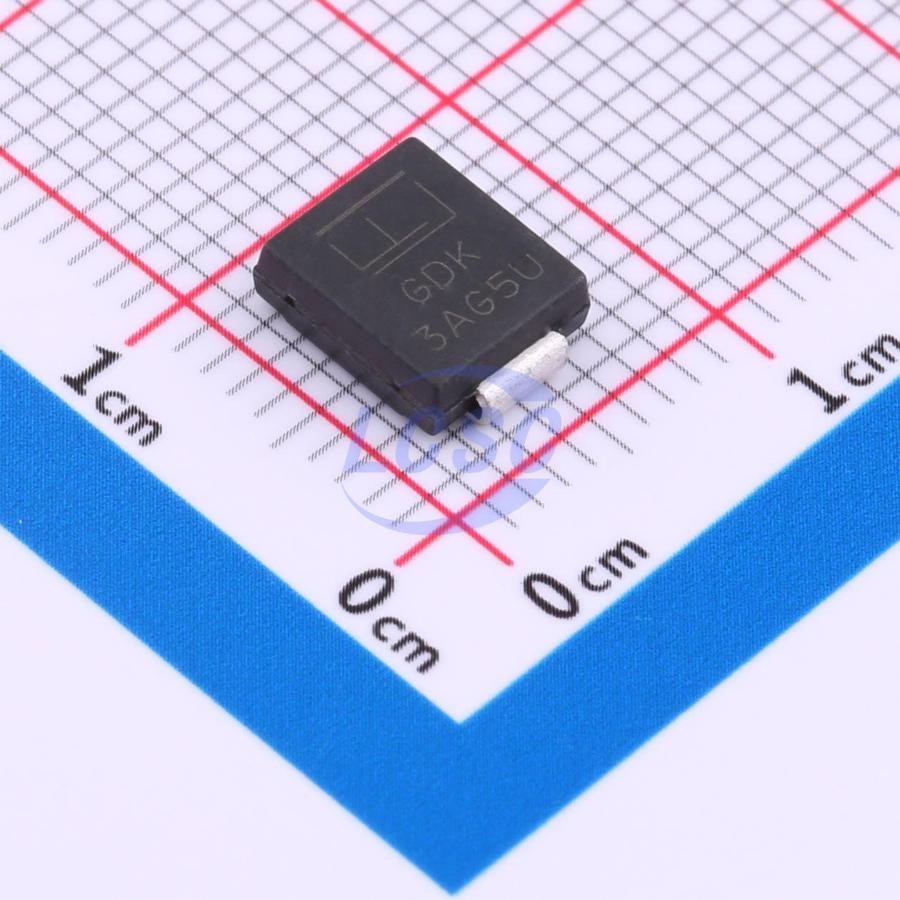

TVS DIODE 6.5VWM 11.2VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMCJ6.5A
- Store part #
- C3720645
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
630 in stock
#C3720645
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.07 | ₹61.07 |
| 10+ | ₹47.38 | ₹473.80 |
| 30+ | ₹41.52 | ₹1,245.60 |
| 100+ | ₹34.12 | ₹3,412.00 |
| 500+ | ₹30.87 | ₹15,435.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹61.07
₹61.07
excl. GST
₹72.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ6.5A
₹61.07 for 1 + GST
Specifications
- Clamping Voltage
- 11.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 134A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.22V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.377 g
Overview
The SMCJ series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR less than 1μA when VBR min > 12V
- For surface mounted applications to optimize board space
- Low profle package
- Built-in strain relief
- Typical failure mode is short from over-specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Fast response time: typically less than 1.0ps from 0V to BV min
- Glass passivated chip junction
- High temperature to refow soldering guaranteed: 260°C/30sec
- VBR @ TJ = VBR @ 25°C × (1 + αT × (TJ - 25)) (αT: Temperature Coeffcient, typical value is 0.1%)
- Plastic package is fammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pbfree and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
