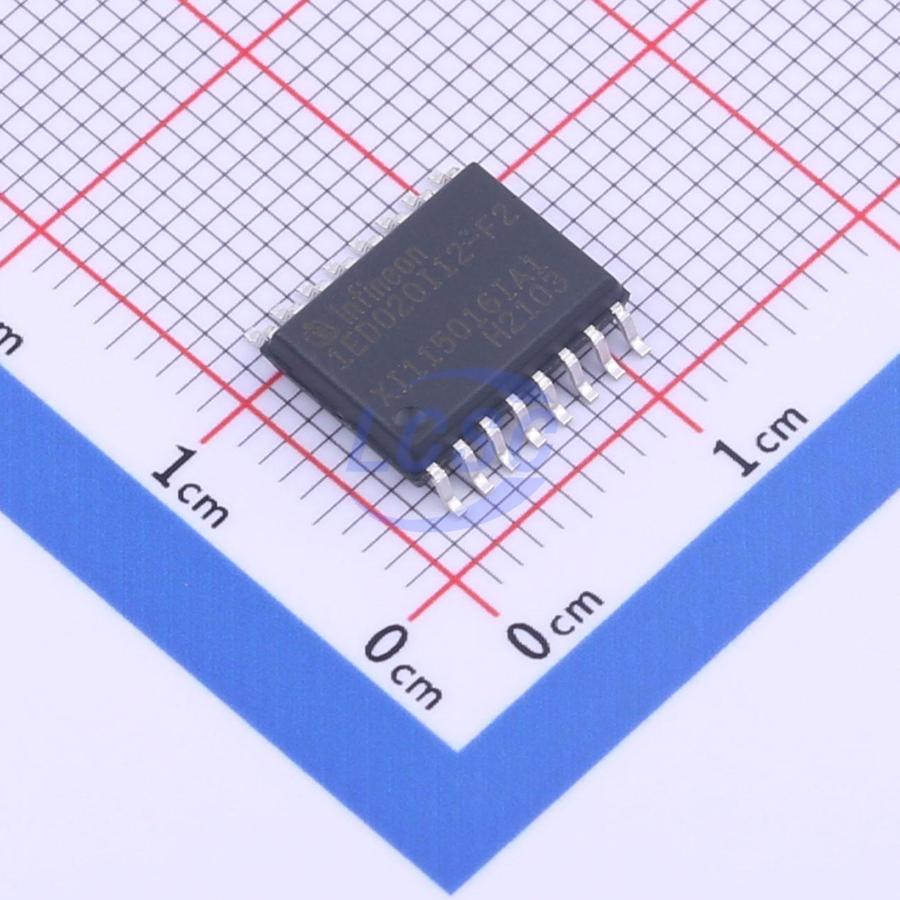

1ED020I12-F2
13V~20V 2.4A 2.4A DSO-16 Gate Drivers
Single IGBT Driver IC
- Manufacturer
- Infineon
- Manufacturer part #
- 1ED020I12-F2
- Store part #
- C2441209
- Package / case
- DSO-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,550 in stock
#C2441209
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹442.21 | ₹442.21 |
| 10+ | ₹378.58 | ₹3,785.80 |
| 30+ | ₹338.83 | ₹10,164.90 |
| 100+ | ₹298.01 | ₹29,801.00 |
| 500+ | ₹279.54 | ₹1,39,770.00 |
| 1,000+ | ₹271.51 | ₹2,71,510.00 |
1 × ₹442.21
₹442.21
excl. GST
₹521.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
1ED020I12-F2
₹442.21 for 1 + GST
Specifications
- Low Level Delay Time
- 170ns
- High Level Delay Time
- 165ns
- Quiescent Current
- 7mA
- Voltage - Supply
- 13V~20V
- Operating Temperature
- -40℃~+105℃
- Current - Output Low(IOL)
- 2.4A
- Rise Time
- 30ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Overcurrent Protection
- Current - Output High(IOH)
- 2.4A
- Load Type
- IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
The 1ED020I12-F2 is a galvanic isolated single channel IGBT driver in PG-DSO-16-15 package that provides an output current capability of typically 2A. All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED020I12-F2 provides several protection features like IGBT desaturation protection, active Miller clamping and active shut down.
Applications
- AC and Brushless DC Motor Drives
- High Voltage DC/DC-Converter
- UPS-Systems
- Welding
Key features
- Single channel isolated IGBT Driver
- For 600V/1200 V IGBTs
- 2 A rail-to-rail output Vcesat-detection Active Miller Clamp
- Coreless transformer isolated driver
- Galvanic Insulation
- Integrated protection features
- Suitable for operation at high ambient temperature
