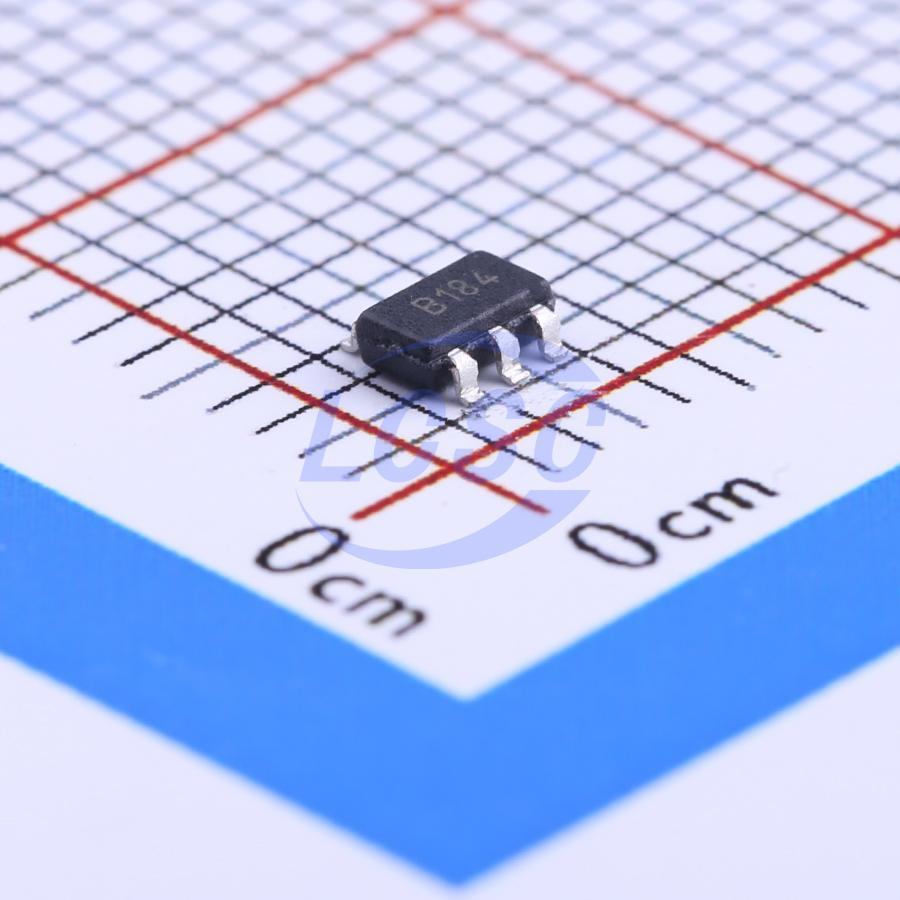

24AA01T-I/OT
1Kbit 400kHz I2C SOT-23-5 Memory RoHS
1K I²C Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,175 in stock
#C122877
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.28 | ₹256.40 |
| 50+ | ₹40.79 | ₹2,039.50 |
| 150+ | ₹36.29 | ₹5,443.50 |
| 500+ | ₹30.67 | ₹15,335.00 |
| 3,000+ | ₹28.17 | ₹84,510.00 |
| 6,000+ | ₹26.67 | ₹1,60,020.00 |
5 × ₹51.28
₹256.40
excl. GST
₹302.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA01T-I/OT
₹256.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The 24AA01/24LC01B (24xxx01*) is a 1Kbit Electrically Erasable PROM. The device is organized as one block of 128x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1μA and 1mA, respectively. The 24Xx01 also has a page write capability for up to 8 bytes of data. The 24XX01 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 and SC-70 packages.
Key features
- Single Supply with Operation Down to 1.7V for 24AAXX Devices, 2.5V for 24LCXX Devices
- Low-Power CMOS Technology: - Read current 1 mA, max. - Standby current 1 μA, max. (l-temp)
- 2-Wire Serial Interface, I²C™ Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce 100 kHz and 400 kHz Compatibility
- Page Write Time 3 ms, typical
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory programmable available
- Packages include 8-lead PDIP, SOIC, TSSOP, DFN, MSOP, 5-lead SOT-23 and SC-70
- Pb-free and RoHS compliant
- Temperature ranges: - Industrial (l): -40℃ to +85℃ - Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA01HT-I/OT#C2062275MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 15 | ₹53.33 · 15 in stock | View |
 | HT2201#C84208HOLTEK · SOT-23-5 | HOLTEK | SOT-23-5 | On request | ₹15.57 · 0 in stock | View |
