MICROCHIP

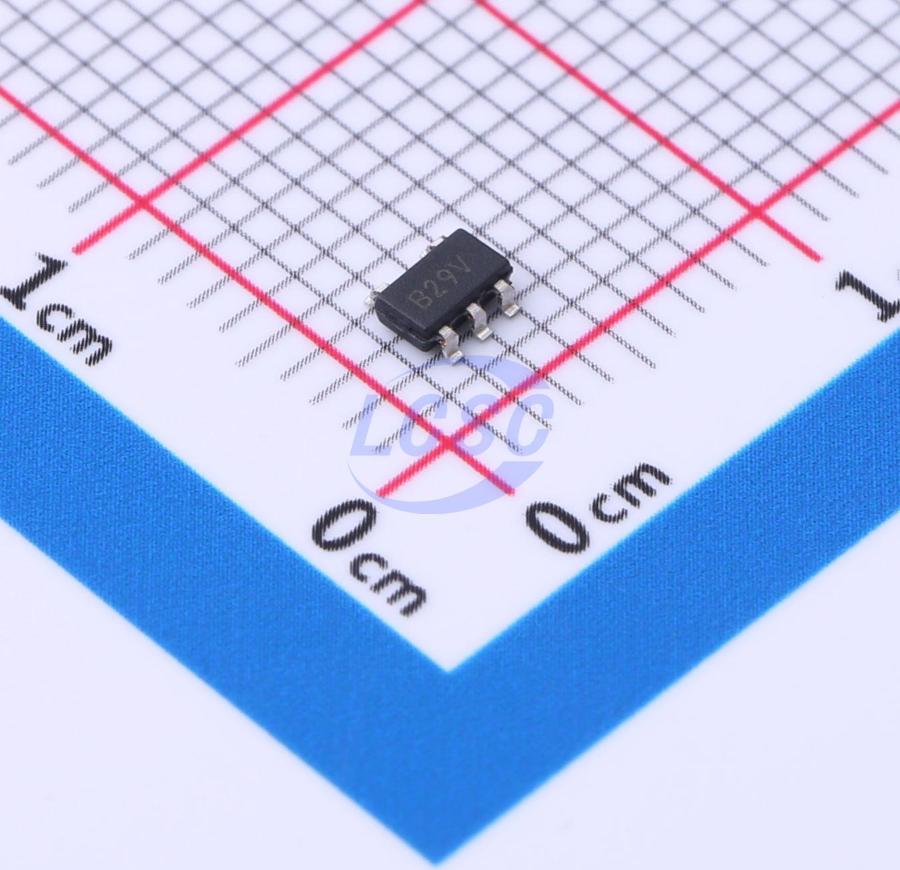

24AA02T-I/OT
2Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
2K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,690 in stock
#C478090
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.70 | ₹168.50 |
| 50+ | ₹29.64 | ₹1,482.00 |
| 150+ | ₹27.89 | ₹4,183.50 |
| 500+ | ₹25.72 | ₹12,860.00 |
| 3,000+ | ₹24.75 | ₹74,250.00 |
| 6,000+ | ₹24.17 | ₹1,45,020.00 |
5 × ₹33.70
₹168.50
excl. GST
₹198.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA02T-I/OT
₹168.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The 24xxx02 is a 2-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices
- Low-Power CMOS Technology: Read current 1 mA, maximum; Standby current 1 μA, maximum (l-temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: Industrial (l): -40°C to +85°C; Extended (E): -40°C to +125°C
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 24AA02HT-I/OT#C2062114MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 80 | ₹48.26 · 80 in stock | View | |
 | 24AA02UIDT-I/OT#C511274MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 852 | ₹79.46 · 852 in stock | View |
 | 24AA02E64T-I/OT#C616198MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 184 | ₹142.24 · 184 in stock | View |
 | 24AA02E48T-I/OT#C38987MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,914 | ₹79.53 · 2,914 in stock | View |
 | 24AA02E48T-E/OT#C2061185MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 74 | ₹165.88 · 74 in stock | View |
