MICROCHIP

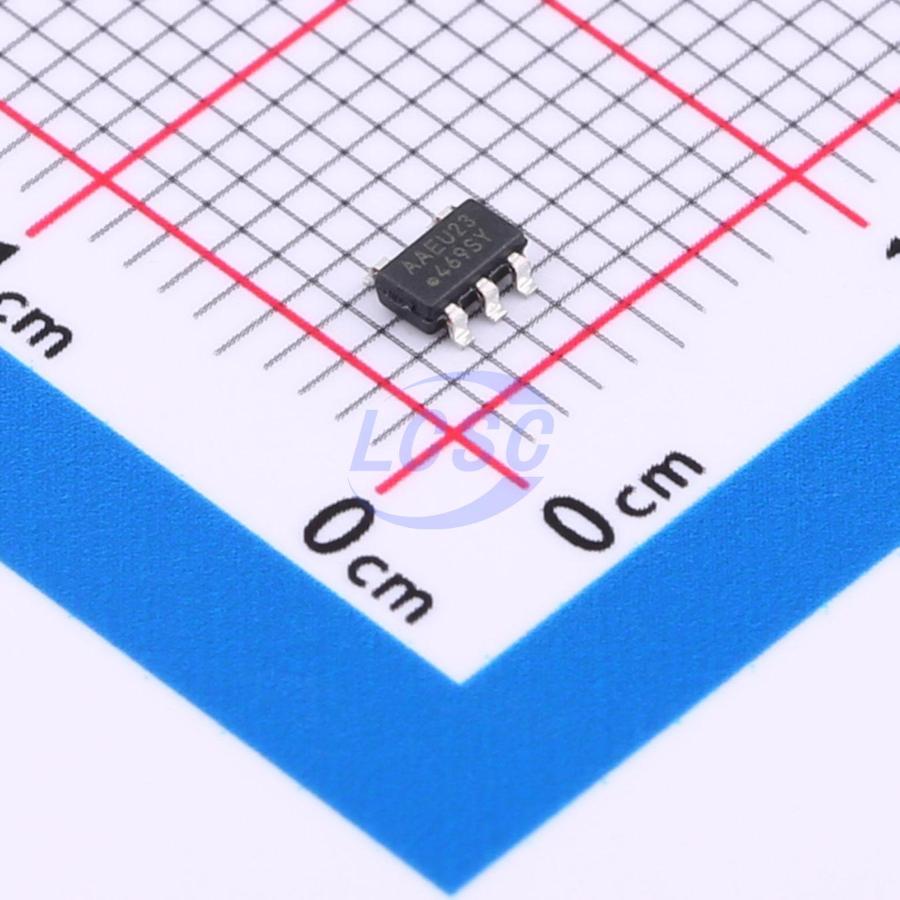

24FC01T-I/OT
1Kbit 1MHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
1K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,892 in stock
#C2066032
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.34 | ₹54.34 |
| 10+ | ₹42.16 | ₹421.60 |
| 30+ | ₹36.95 | ₹1,108.50 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹27.60 | ₹13,800.00 |
| 1,000+ | ₹25.65 | ₹25,650.00 |
1 × ₹54.34
₹54.34
excl. GST
₹64.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24FC01T-I/OT
₹54.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
The 24xxx01 is a 1-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 128x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1μA and 1 mA, respectively. The 24Xx01 also has a page write capability for up to 8 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA01 and 24FC01 Devices, 2.5V for 24LC01B Devices
- Low-Power CMOS Technology: Read current 1 mA, maximum; Standby current 1μA, maximum (I-temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce; 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: Industrial (I): -40℃ to +85℃; Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24FC01T-E/OT#C2064199MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 214 | ₹89.66 · 214 in stock | View |
 | AT24C01C-STUM-T#C254768MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 3 | ₹101.05 · 3 in stock | View |
 | AT24CS01-STUM-T#C616257MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 215 | ₹147.66 · 215 in stock | View |
 | AT24C01C-STUM-T-TUDI#C22469216Tudi · SOT-23-5 | Tudi | SOT-23-5 | 1,750 | ₹20.12 · 1,750 in stock | View |
 | AT24C01D-STUM-T-TUDI#C22469217Tudi · SOT-23-5 | Tudi | SOT-23-5 | 1,120 | ₹26.75 · 1,120 in stock | View |
