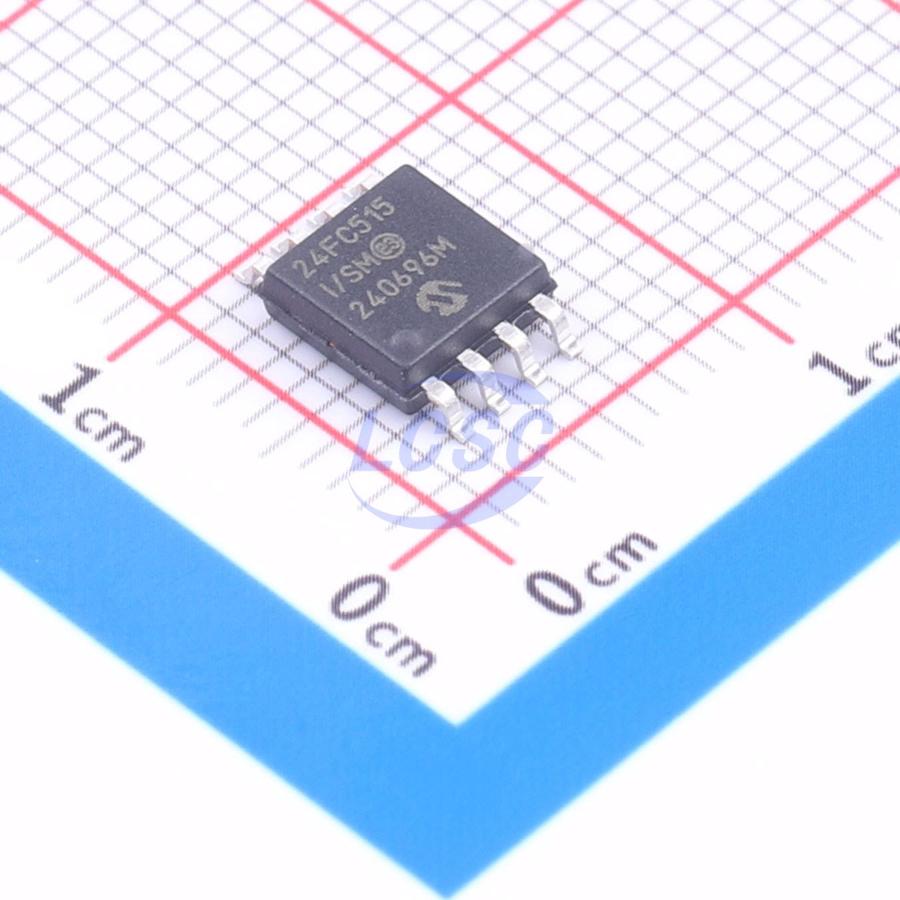

24FC515-I/SM

The Microchip Technology Inc. 24AA515/24LC515/ 24FC515 (24xx515*) is a 64K x 8 (512K bit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device has both byte write and page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads. Reads may be sequential within address boundaries 0000h to 7FFFh and 8000h to FFFFh. Functional address lines allow up to four devices on the same data bus. This allows for up to 2 Mbits total system EEPROM memory. This device is available in the standard 8-pin plastic DIP and SOIJ packages.

Key features

• Single Supply with Operation Down to 1.7V for 24AAXX Devices, 2.5V for 24LCXX Devices
• Low-Power CMOS Technology: - Active current 500 uA, typical - Standby current 100 nA, typical
• 2-Wire Serial Interface, I²C™ Compatible
• Cascadable up to Four Devices
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kHz and 400 kHz Clock Compatibility
• Page Write Time 5 ms max.
• Self-Timed Erase/Write Cycle
• 64-Byte Page Write Buffer
• Hardware Write Protect
• ESD Protection >4000V
• More than 1 Million Erase/Write Cycles
• Data Retention >200 years
• Factory Programming Available
• Packages Include 8-lead PDIP, SOIJ
• Pb-Free and RoHS Compliant
• Temperature Ranges: - Industrial (I): - 40℃ to +85℃ - Automotive (E): - 40℃ to +125℃
