MICROCHIP

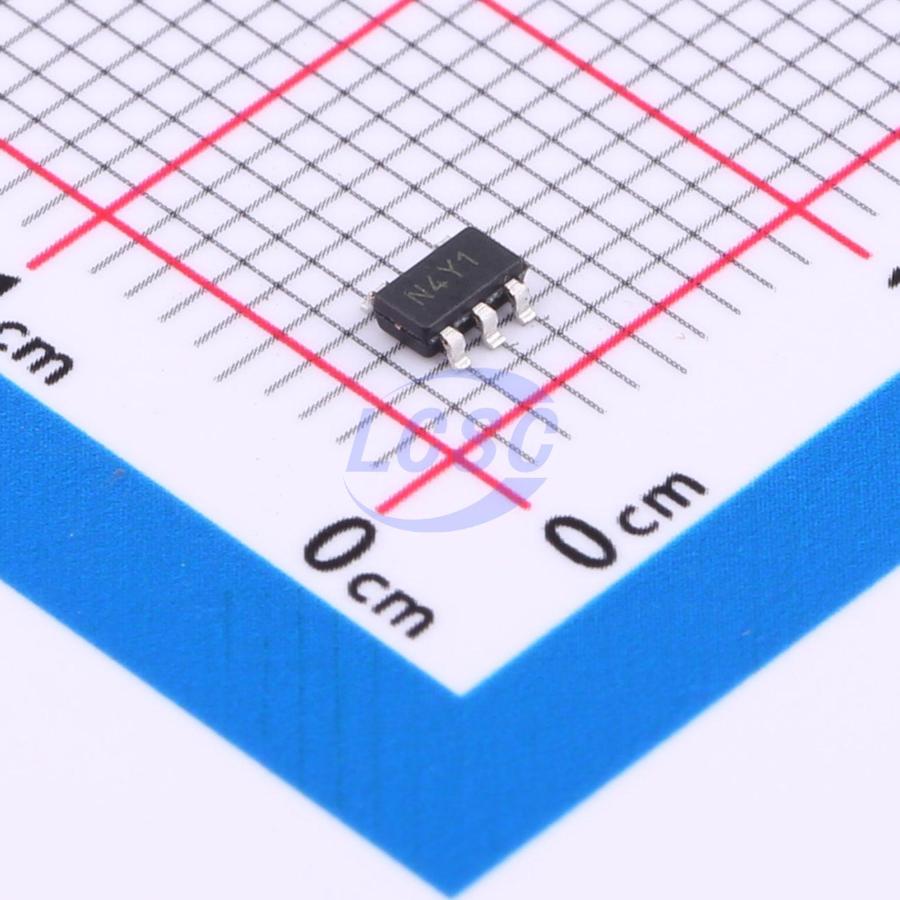

24LC08BT-E/OT
8Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
8K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,931 in stock
#C2061755
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.84 | ₹90.84 |
| 10+ | ₹75.41 | ₹754.10 |
| 30+ | ₹68.89 | ₹2,066.70 |
| 100+ | ₹60.63 | ₹6,063.00 |
| 500+ | ₹57.15 | ₹28,575.00 |
| 1,000+ | ₹54.76 | ₹54,760.00 |
1 × ₹90.84
₹90.84
excl. GST
₹107.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC08BT-E/OT
₹90.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The 24xxx08 is an 8-Kbit Electrically Erasable PROM. The device is organized as four blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24xxx08 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices
- Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1 μA, maximum (I-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC08BT-I/OT#C89050MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 6,635 | ₹59.88 · 6,635 in stock | View |
 | 24LC08BHT-I/OT#C2062727MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | On request | Price on request | Quote |
| 24AA08T-I/OT#C144178MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 1,902 | ₹79.54 · 1,902 in stock | View | |
 | CAT24C08TDI-GT3#C5207910onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 155 | ₹48.63 · 155 in stock | View |
 | 24LC08BT-I/OT-TUDI#C41411020Tudi · SOT-23-5 | Tudi | SOT-23-5 | 3,655 | ₹22.40 · 3,655 in stock | View |
